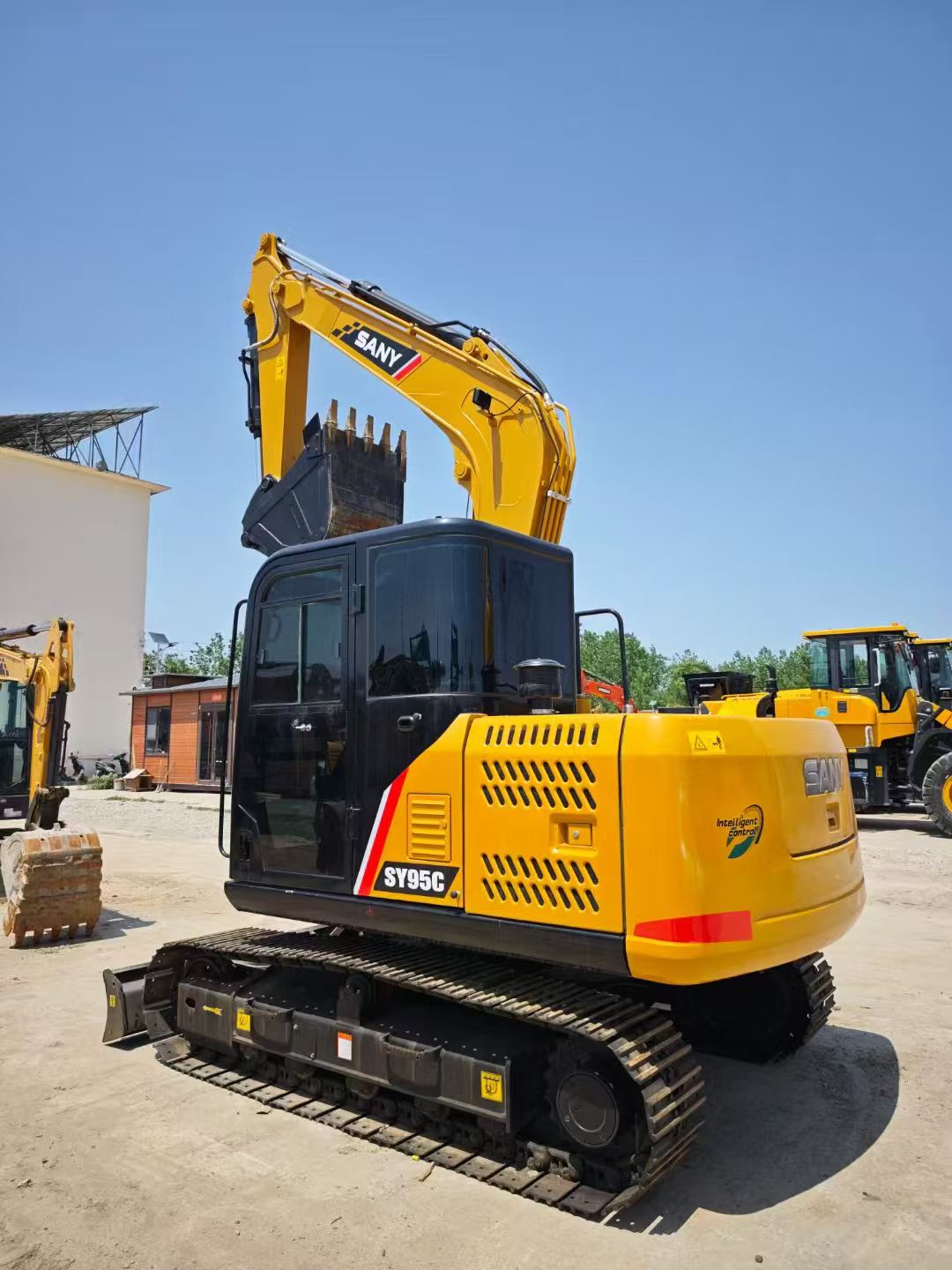

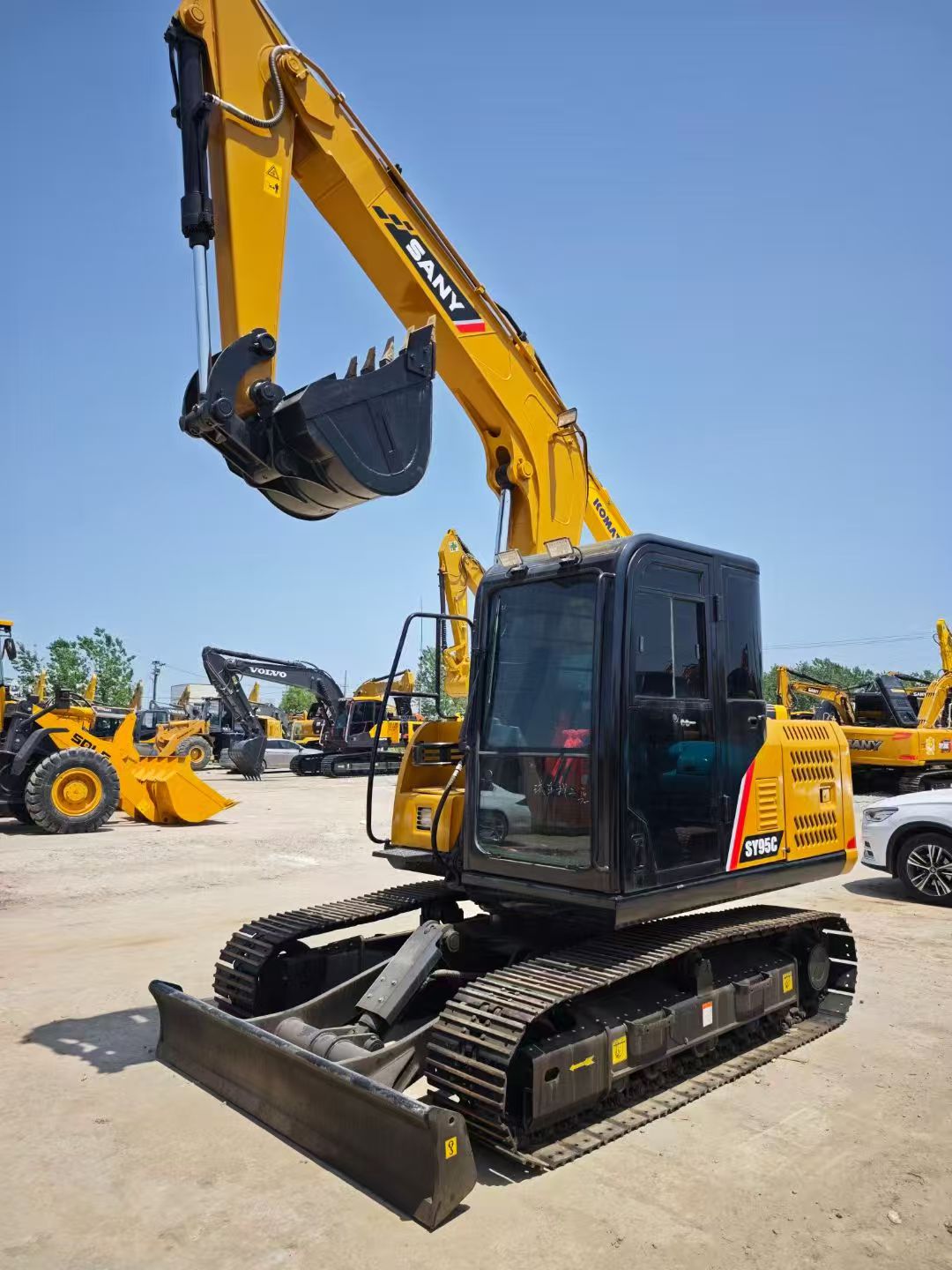

🚜 SANY SY95C Compact Excavator – Specifications & Features

🔧 Engine & Performance

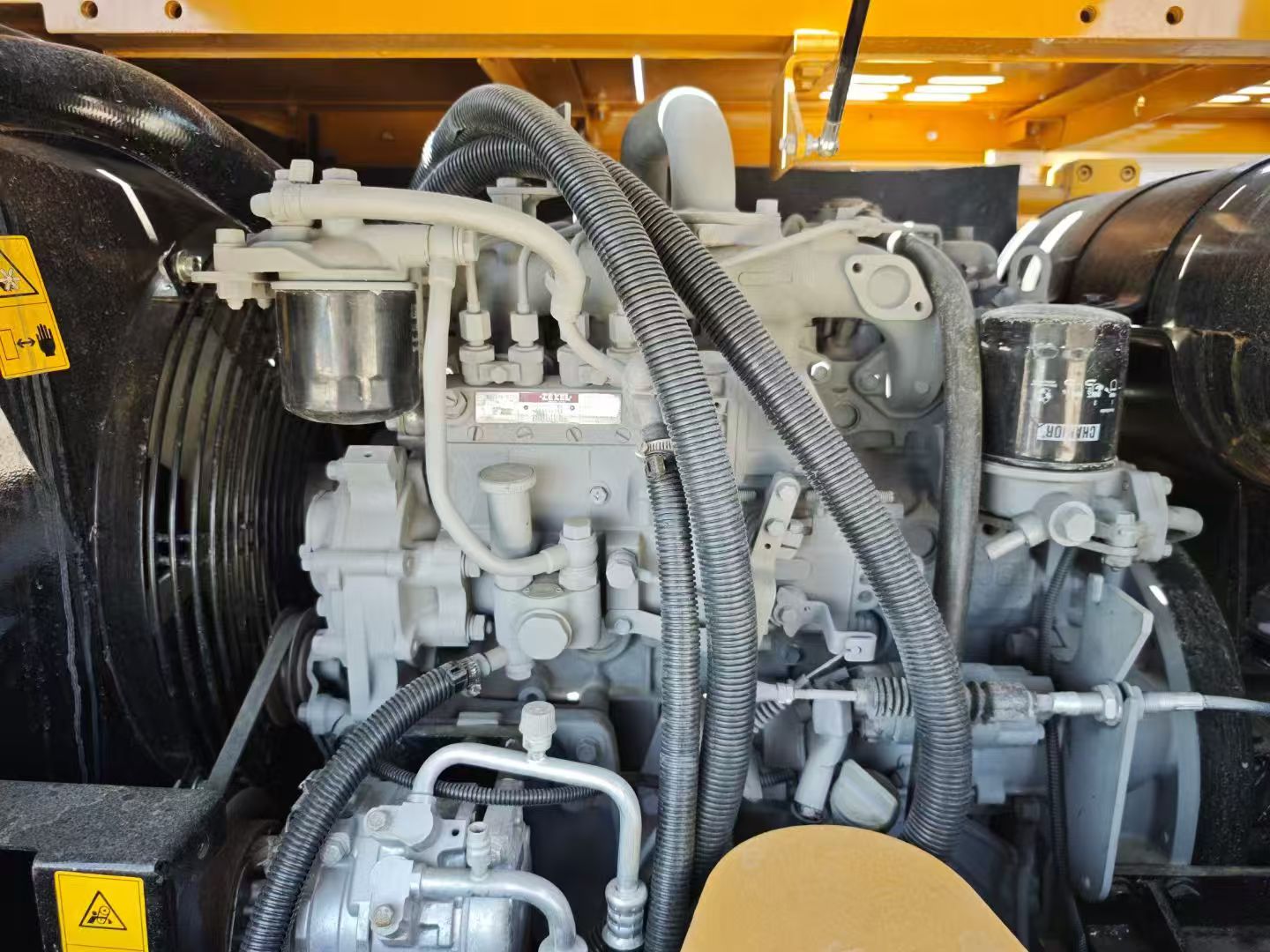

• Engine Model: Yanmar 4TNV98CT-VSY

• Displacement: 3.3 L

• Gross Power: 72.0 hp (53.7 kW)

• Net Power: 66.4 hp (49.5 kW)

• Emission Standard: Tier 4 Final / Stage V

• Fuel Tank Capacity: 240 L

• Hydraulic Tank Capacity: 127 L

⚙️ Dimensions & Weight

• Operating Weight: 9,180 kg (20,238 lbs)

• Transport Length: 6,560 mm (21′ 6″)

• Transport Width: 2,260 mm (7′ 5″)

• Transport Height: 3,200 mm (10′ 6″)

• Tail Swing Radius: 1,885 mm (6′ 2″)

• Ground Clearance: 360 mm (14″)

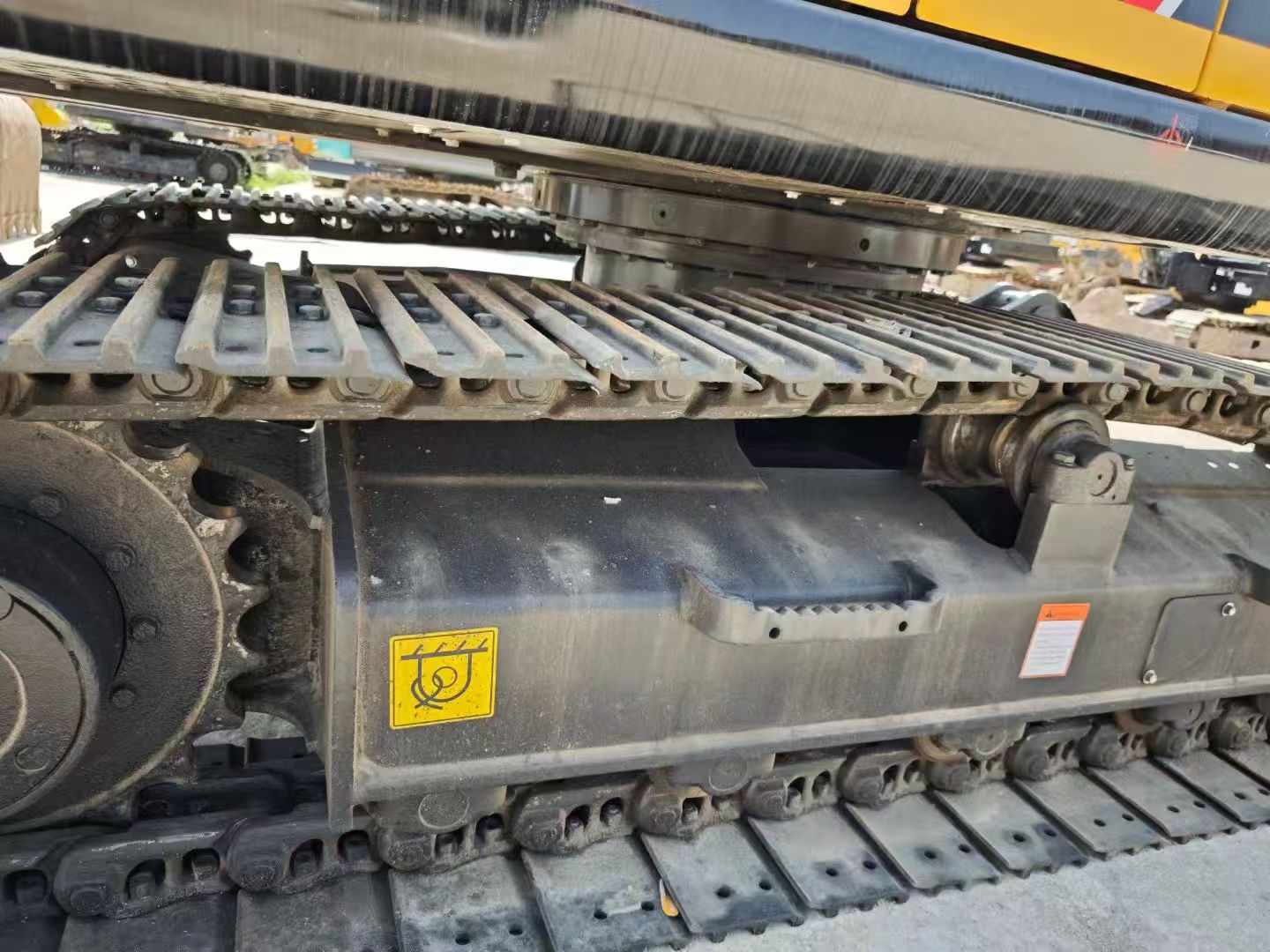

• Track Width (standard shoe): 450 mm (18″)

• Track Gauge: 1,810 mm (5′ 11″)

💪 Hydraulic & Operational Performance

• Boom Length: 4,000 mm (13′ 1″)

• Stick (Arm) Length: 1,700 mm (5′ 7″)

• Bucket Capacity: 0.38 m³

• Bucket Digging Force: 64.6 kN

• Arm Digging Force: 53.5 kN

• Maximum Digging Depth: 4,330 mm (14′ 2″)

• Maximum Digging Reach: 6,320 mm (20′ 9″)

• Maximum Dumping Height: 5,210 mm (17′ 1″)

• Maximum Vertical Digging Depth: 3,080 mm (10′ 1″)

• Maximum Swing Radius: 1,990 mm (6′ 6″)

🛠️ Features & Technologies

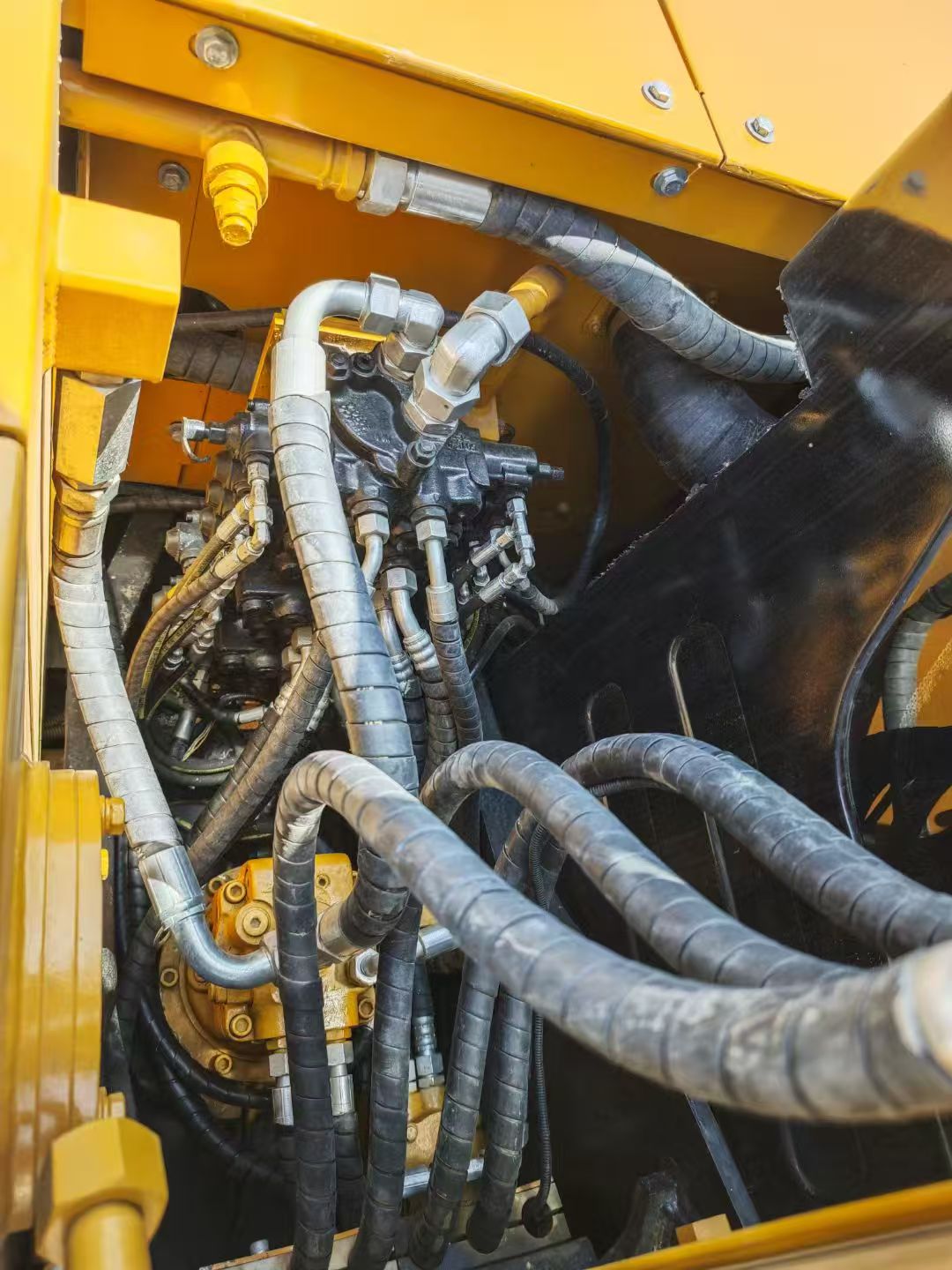

• Hydraulic System: Load Sensing with Pilot Control

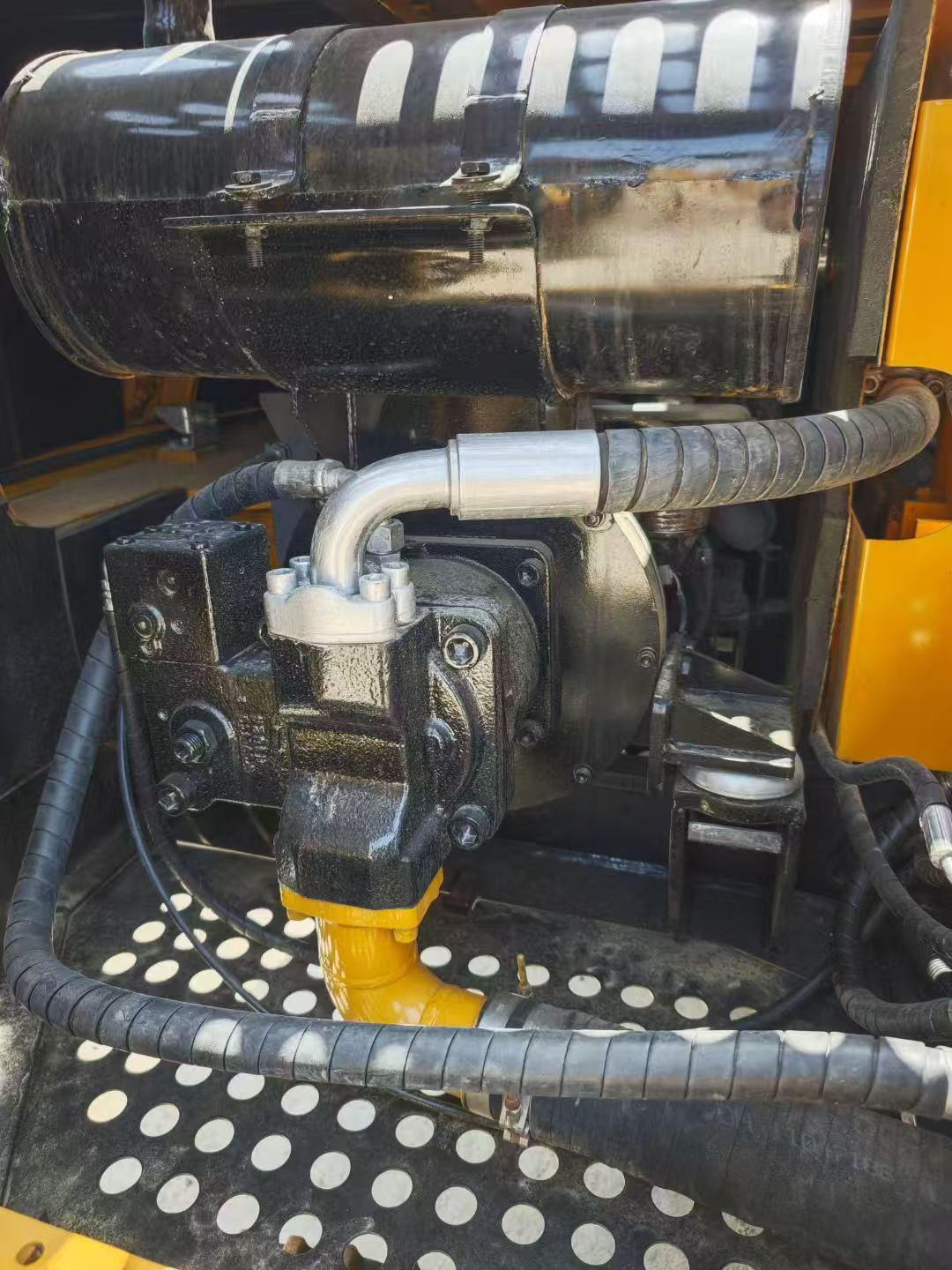

• Main Hydraulic Pump: Axial Piston – Variable Displacement

• Operating Flow (maximum): 199.5 L/min (52.7 gal/min)

• Operating Pressure (maximum): 24.5 MPa (3,553 psi)

• Auxiliary Flow (maximum): 90 L/min

• Auxiliary Pressure (maximum): 25 MPa (3,626 psi)

• Travel Motor: Axial Piston with Park Brake

• Travel Pressure (maximum): 24.5 MPa (3,553 psi)

• Swing Motor: Axial Piston with Swing Brake

🏗️ Applications

The SANY SY95C is ideal for:

• General construction

• Excavation and trenching

• Landscaping and site preparation

• Utility installation

• Road and infrastructure developmen
