🚜 – Specifications & Features
🔧 Engine & Performance
-

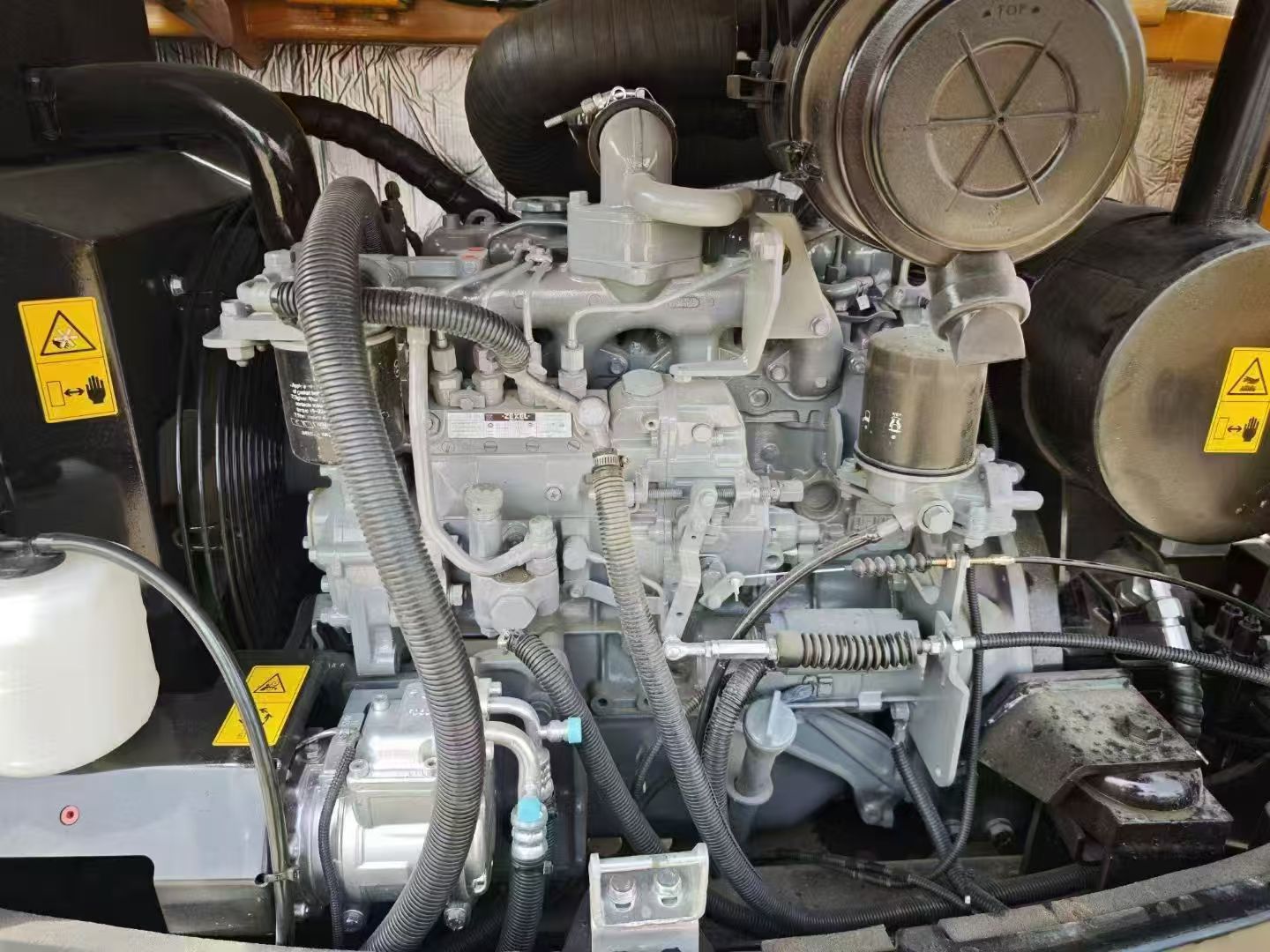

Engine Model: Yanmar 4TNV98C-WSY
-
Displacement: 3.3 L
-
Gross Power: 42.4 kW (56.9 hp)
-

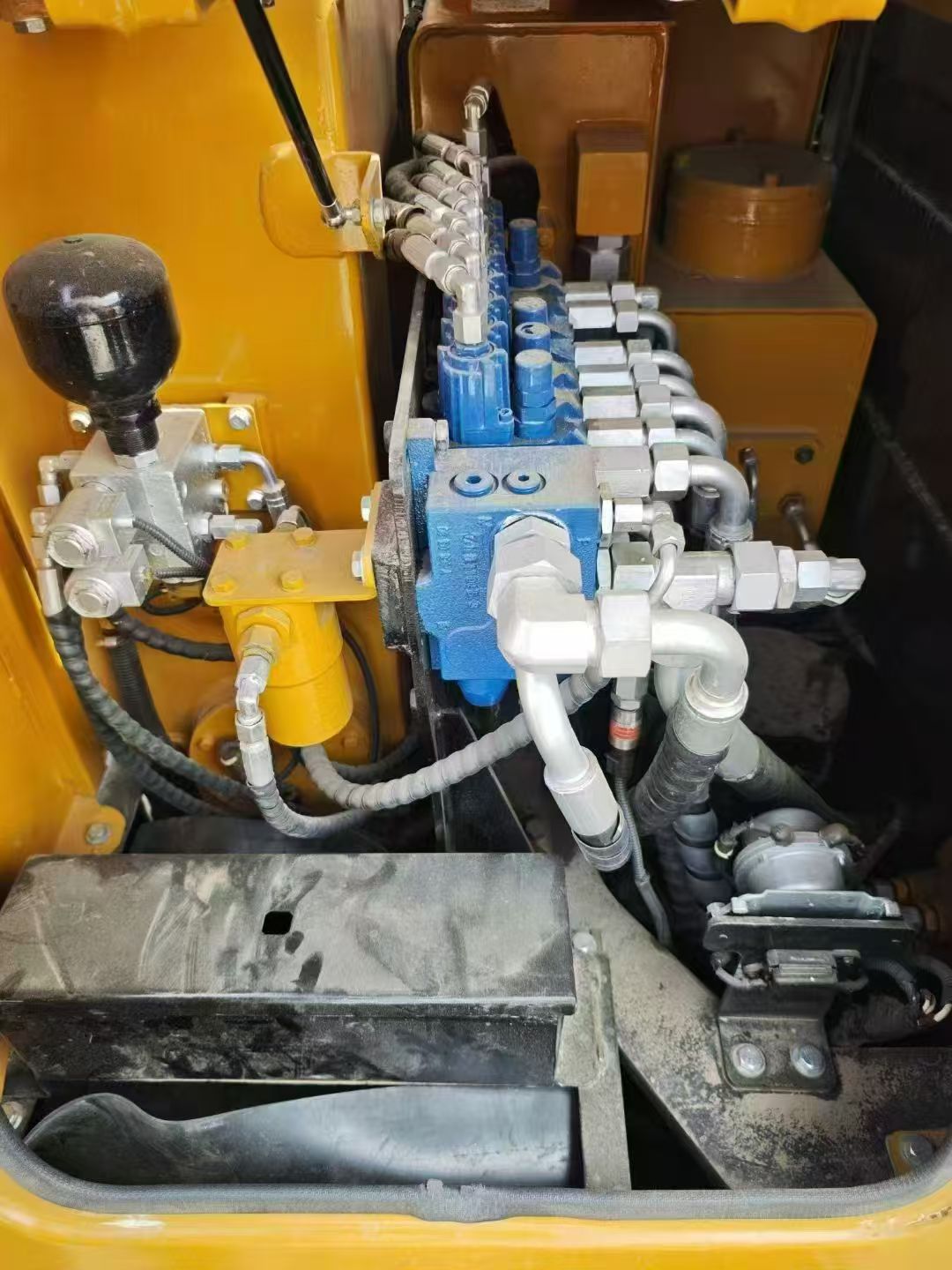

Hydraulic System: Load Sensing with Pilot Control
-

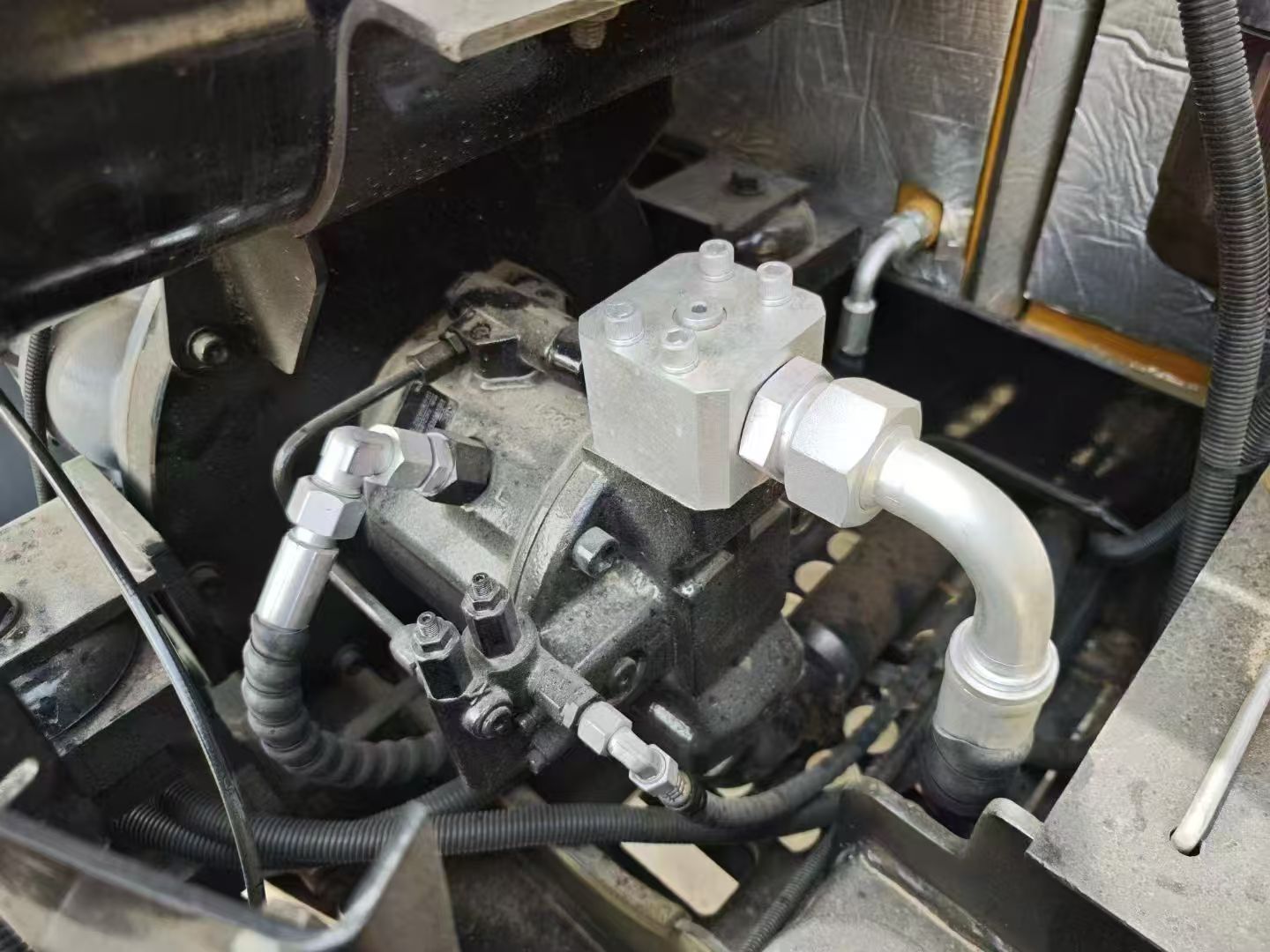

Main Hydraulic Pump: Axial Piston – Variable Displacement
-
Operating Flow (maximum): 142.7 L/min
-
Operating Pressure (maximum): 24.5 MPa (3,553 psi)
-
Auxiliary Flow (maximum): 90 L/min
-
Auxiliary Pressure (maximum): 25 MPa (3,626 psi)
-
Travel Motor: Axial Piston with Park Brake
-
Travel Pressure (maximum): 24.5 MPa (3,553 psi)
-
Swing Motor: Axial Piston with Swing Brake
⚙️ Dimensions & Weight
-
Operating Weight: 6,100 kg (13,448 lbs)
-
Transport Length: 6,015 mm (19′ 9″)
-
Transport Width: 2,005 mm (6′ 7″)
-
Transport Height: 2,645 mm (8′ 8″)
-
Tail Swing Radius: 1,640 mm (5′ 5″)
-

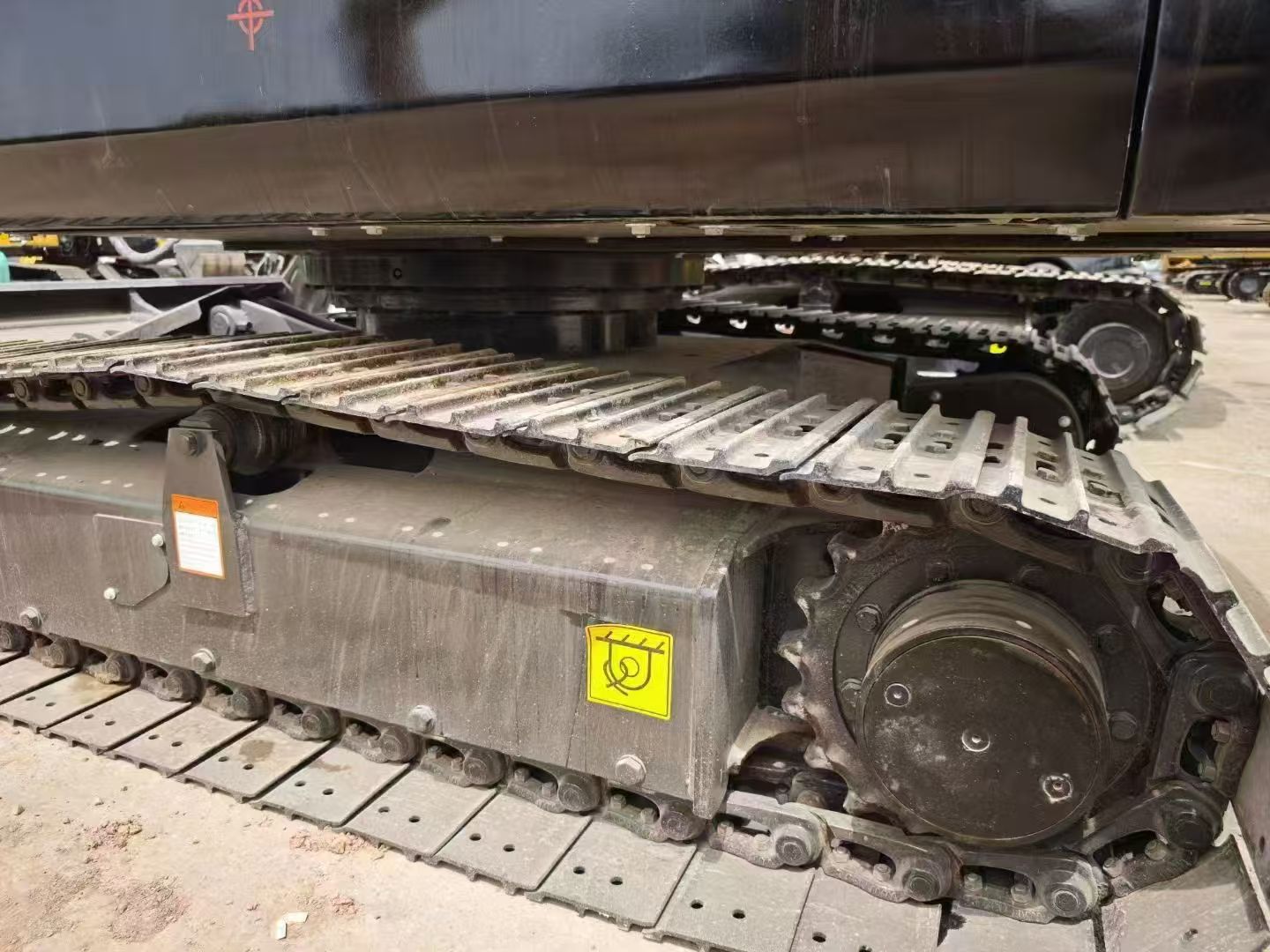

Track Length on Ground: 2,045 mm (6′ 9″)
-
Track Length: 2,545 mm (8′ 4″)
-
Track Gauge: 1,600 mm (5′ 3″)
-
Track Width (standard shoe): 400 mm (16″)
-
Ground Clearance (minimum): 330 mm (13″)
-
Blade Height: 340 mm (13″)
💪 Hydraulic & Operational Performance
-

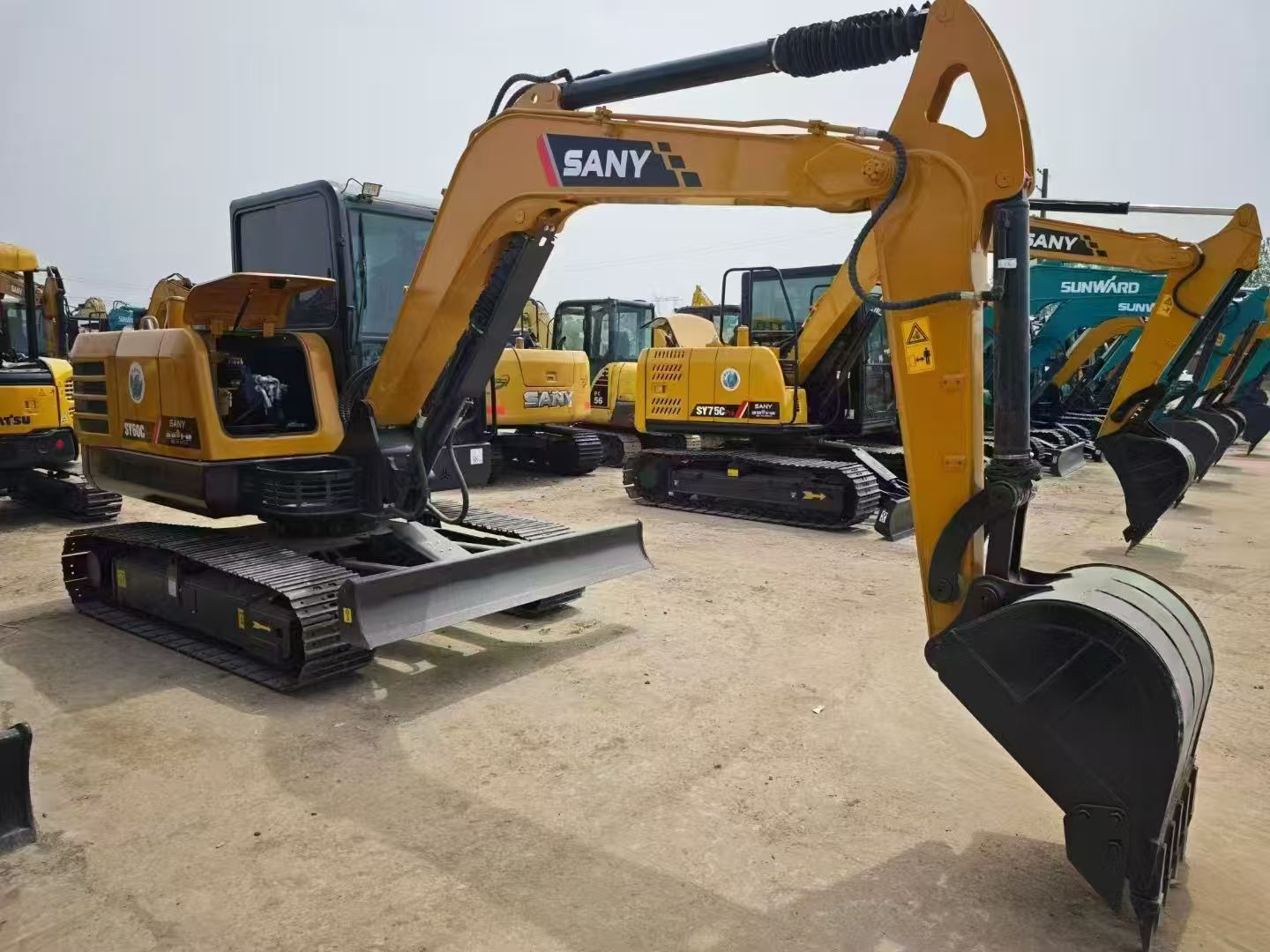

Boom Length: 3,000 mm (9′ 10″)
-
Stick (Arm) Length: 1,700 mm (5′ 7″)
-
Maximum Digging Depth: 3,950 mm (13′ 0″)
-
Maximum Vertical Wall Digging Depth: 3,180 mm (10′ 5″)
-
Maximum Reach at Ground Level: 6,320 mm (20′ 9″)
-
Maximum Digging Height: 5,790 mm (19′ 0″)
-
Maximum Dumping Height: 4,060 mm (13′ 4″)
-
Maximum Swing Radius: 2,555 mm (8′ 5″)
-
Bucket Capacity: 0.21 m³
-
Bucket Digging Force: 45 kN
-
Arm Digging Force: 33 kN
-
Gradeability: 35°
🛠️ Features & Technologies
-
Optimized Hydraulic System: Enhances operating efficiency by up to 5% and fuel efficiency by up to 10%
-

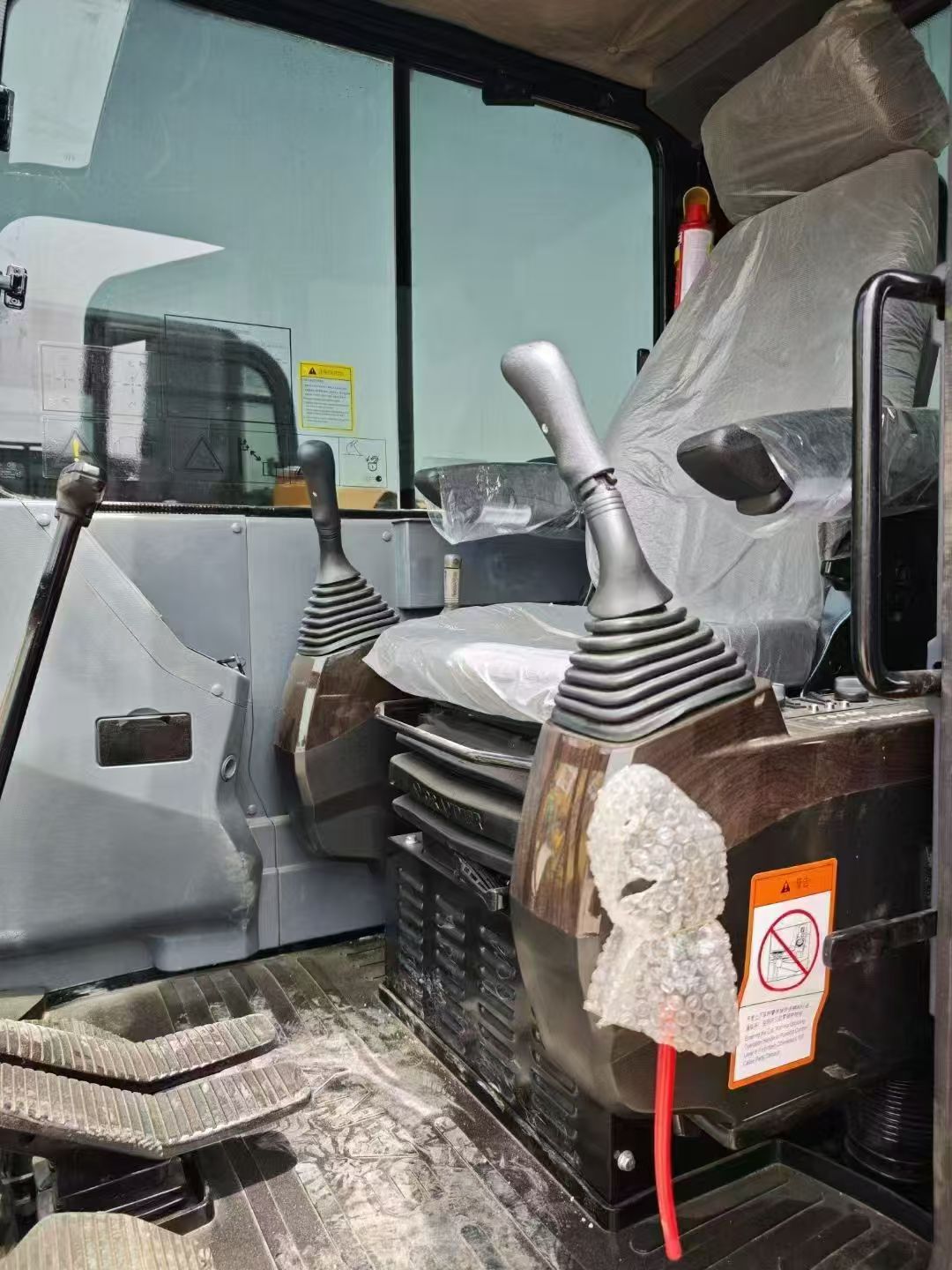

Comfortable Operator Cabin: Features high visibility, climate control, and a weight-adjustable suspension seat
-
Conventional Tail Swing: Provides enhanced stability and power
