🚜  – Specifications & Features

🔧 Engine & Performance

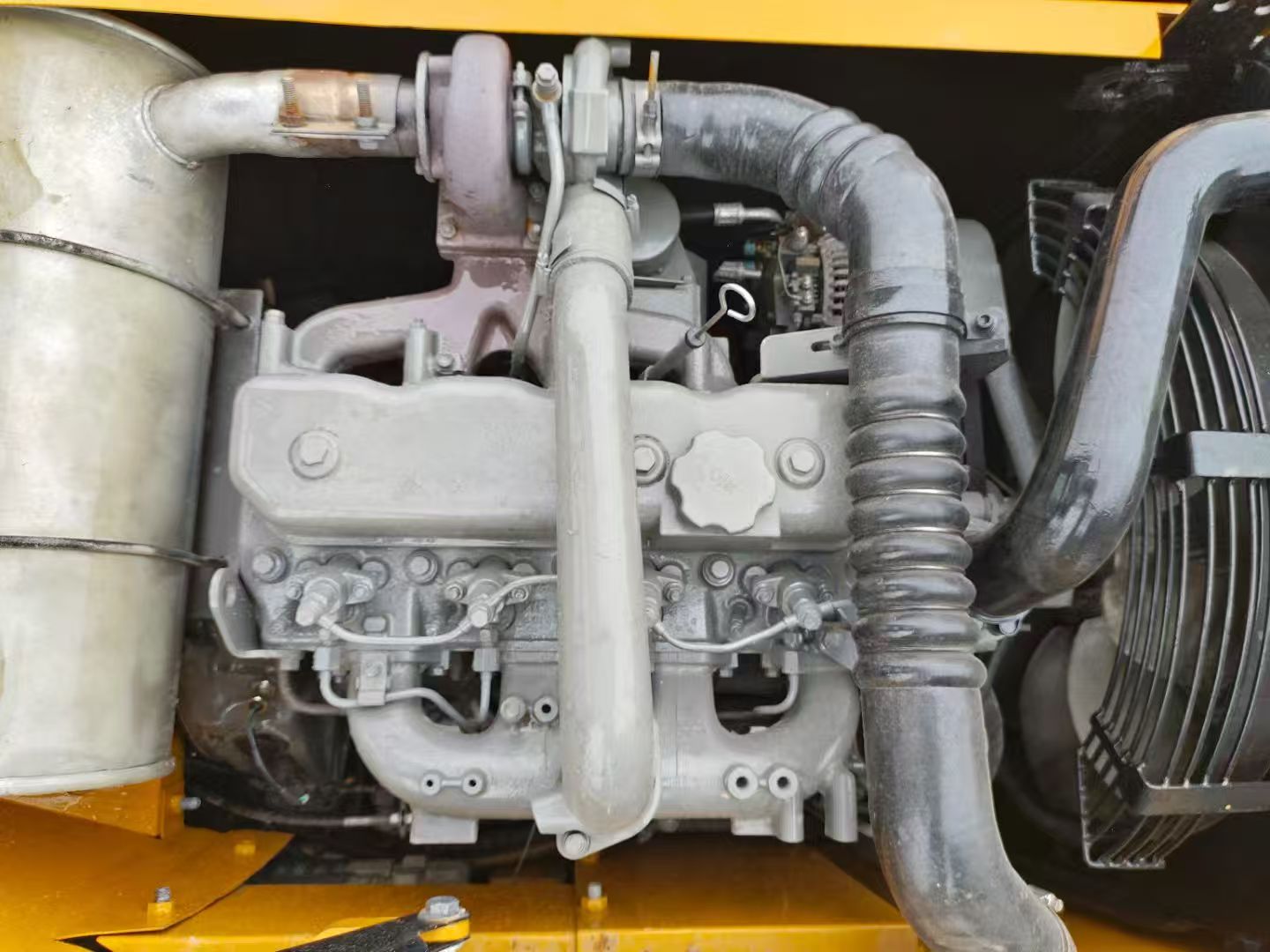

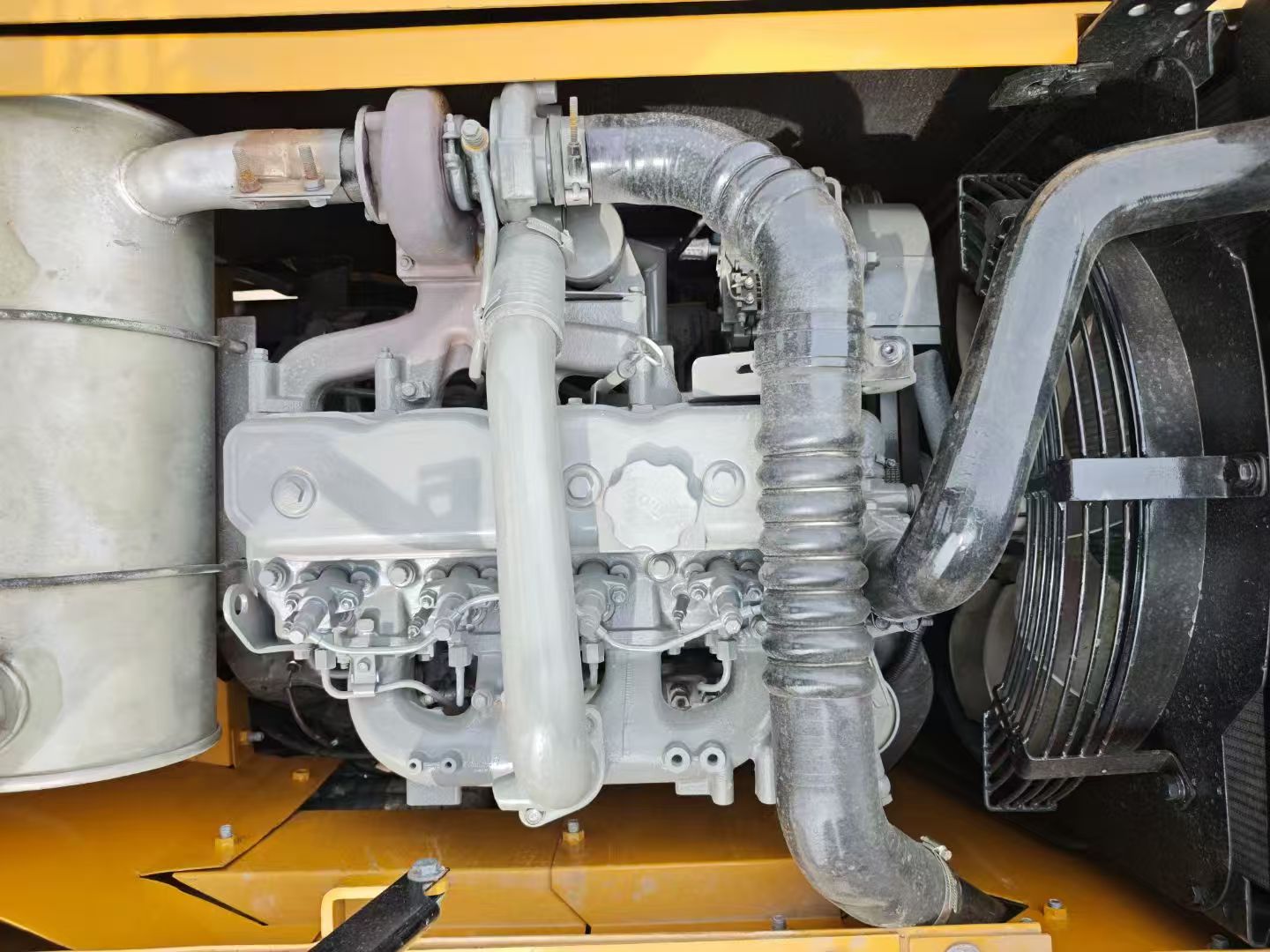

• Engine Model: Isuzu 4JJ1X

• Rated Power: 73 kW @ 2,200 rpm

• Displacement: 2.999 L

• Fuel Tank Capacity: 240 L

• Hydraulic Tank Capacity: 175 L

• Emission Standard: Tier 4 Final / Stage V

⚙️ Dimensions & Weight

• Operating Weight: 14,870 kg

• Transport Length: 7,700 mm

• Transport Width: 2,600 mm

• Transport Height: 2,815 mm

• Tail Swing Radius: 2,205 mm

• Track Width: 600 mm

• Ground Clearance: 425 mm

💪 Hydraulic & Operational Performance

• Bucket Capacity: 0.6 m³

• Bucket Digging Force: 93 kN

• Arm Digging Force: 66 kN

• Max Digging Depth: 5,500 mm

• Max Reach at Ground Level: 8,318 mm

• Swing Speed: 12 rpm

• Travel Speed: 3.5 / 5.5 km/h

• Gradeability: 35°

🛠️ Features & Technologies

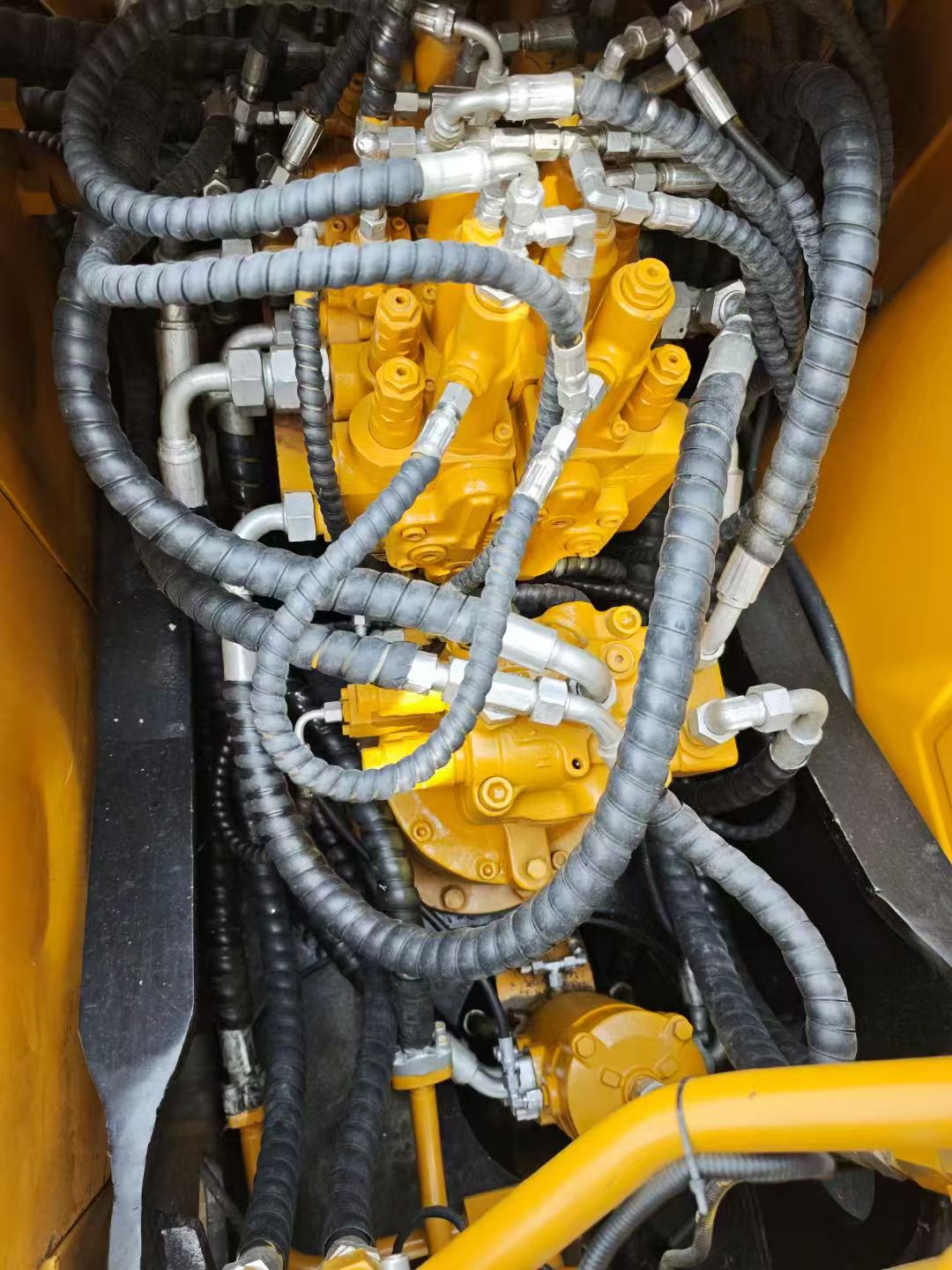

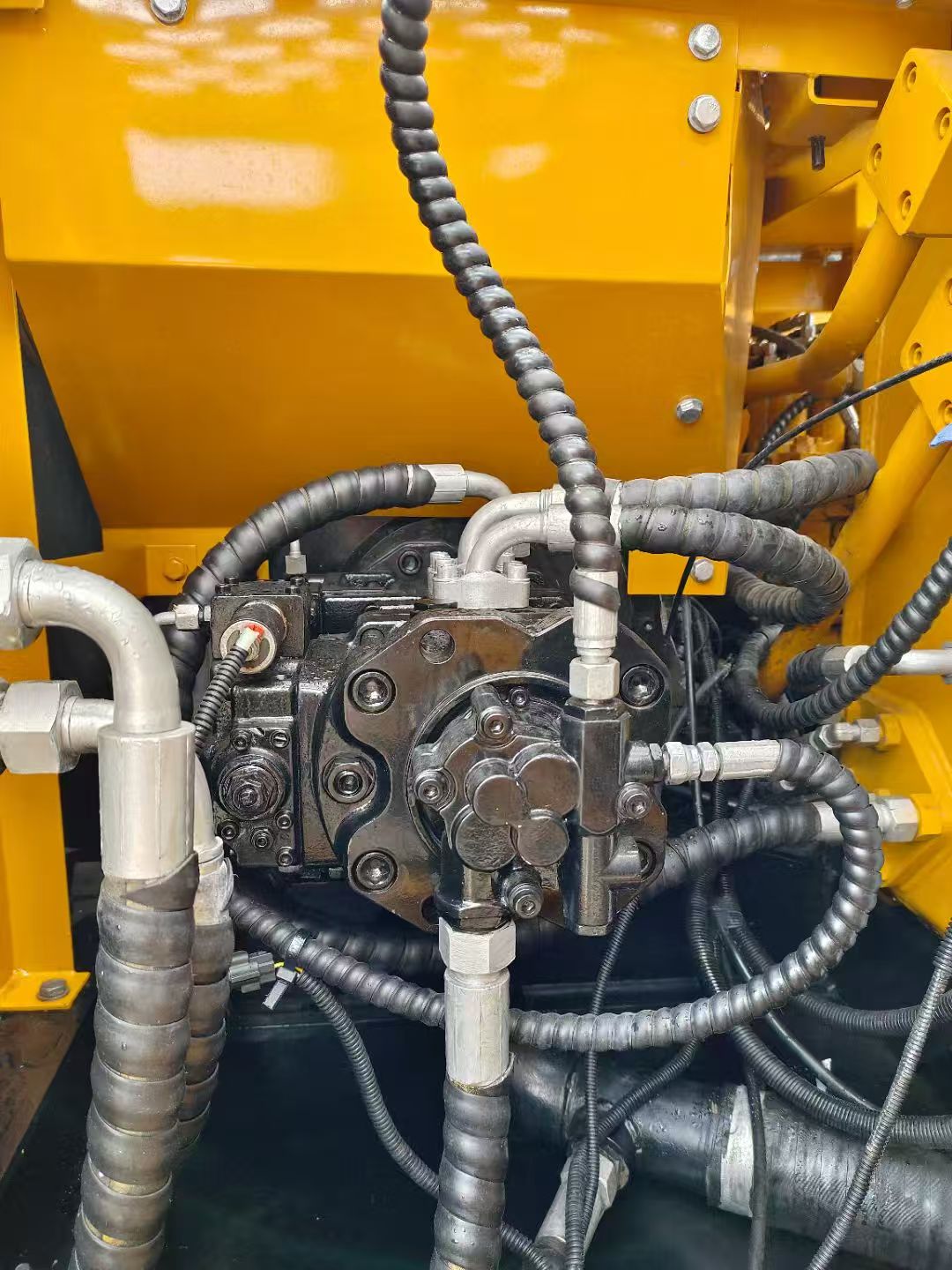

• Load Sensing Hydraulic System with Pilot Control

• Axial Piston Travel Motor with Park Brake

• Axial Piston Swing Motor with Swing Brake

• Spacious Operator Cabin with Air Conditioning and Ergonomic Controls

🏗️ Applications

• Excavation and trenching

• Site preparation and grading

• Material handling and lifting

• Demolition and earthmoving

• Utility installation
