🚜  – Specifications & Features

🔧 Engine & Performance

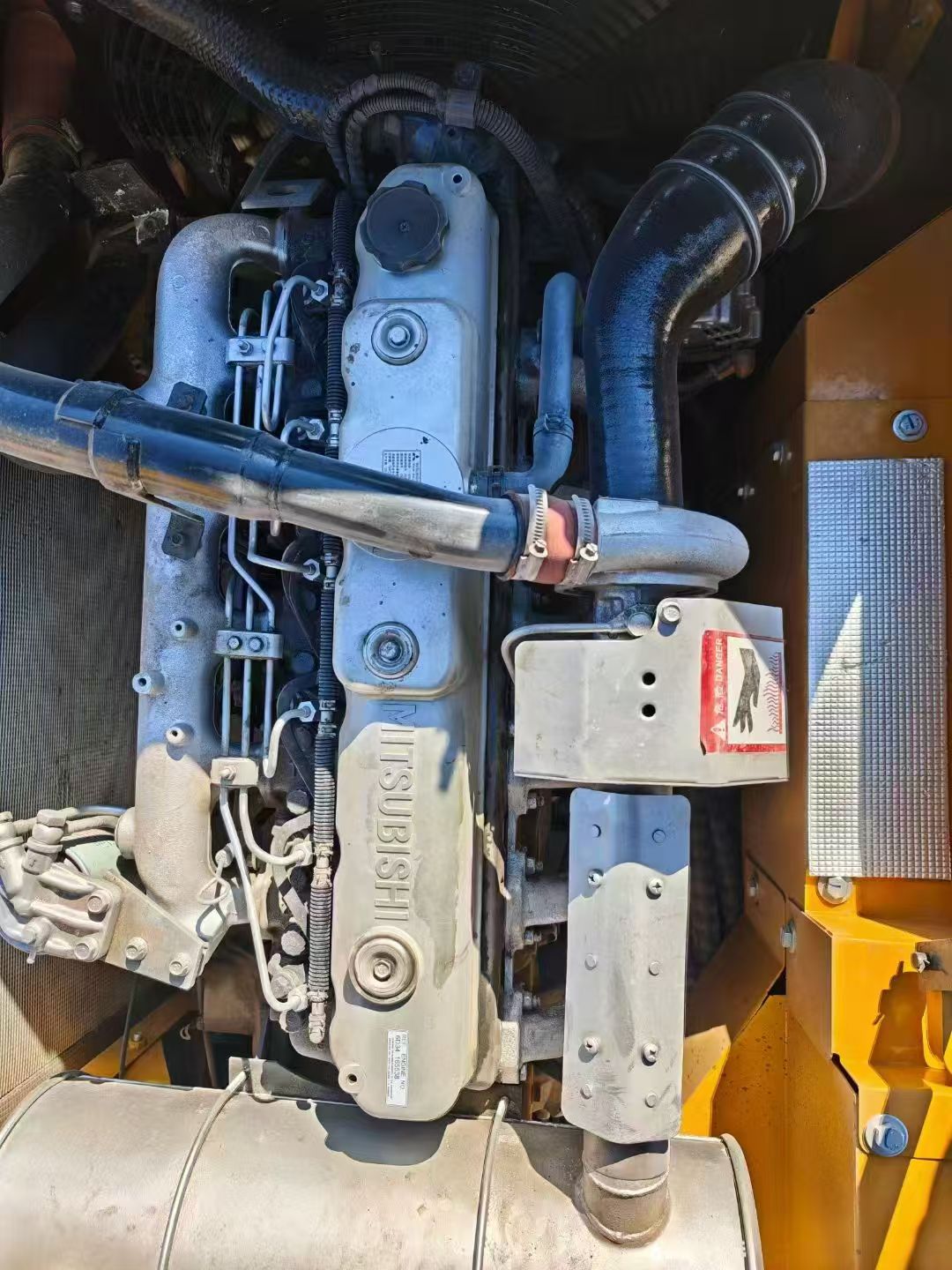

• Engine Model: Mitsubishi 4M50

• Rated Power: 118 kW (158 hp)

• Displacement: 4.9 L

• Emission Standard: Tier 2

• Fuel Tank Capacity: 340 L

• Hydraulic Oil Tank Capacity: 239 L

⚙️ Dimensions & Weight

• Operating Weight: 21,900 kg

• Transport Length: 9,680 mm

• Transport Width: 2,980 mm

• Transport Height: 3,440 mm

• Track Width: 600 mm

• Tail Swing Radius: 2,900 mm

• Ground Clearance: 440 mm

• Gradeability: 70% (35°)

💪 Hydraulic & Operational Performance

• Bucket Capacity: 0.93 m³

• Bucket Digging Force: 138 kN

• Arm Digging Force: 103 kN

• Maximum Digging Depth: 6,255 mm

• Maximum Digging Reach: 9,600 mm

• Swing Speed: 11 rpm

• Travel Speed: 5.4 km/h (high), 3.3 km/h (low)

• Maximum Travel Force: 191 kN

🛠️ Features & Technologies

• Positive Flow Hydraulic System: Enhances efficiency and responsiveness

• Multi-Function Control: Allows operators to select performance modes based on task requirements

• Advanced Control System: Offers multiple work modes to optimize performance

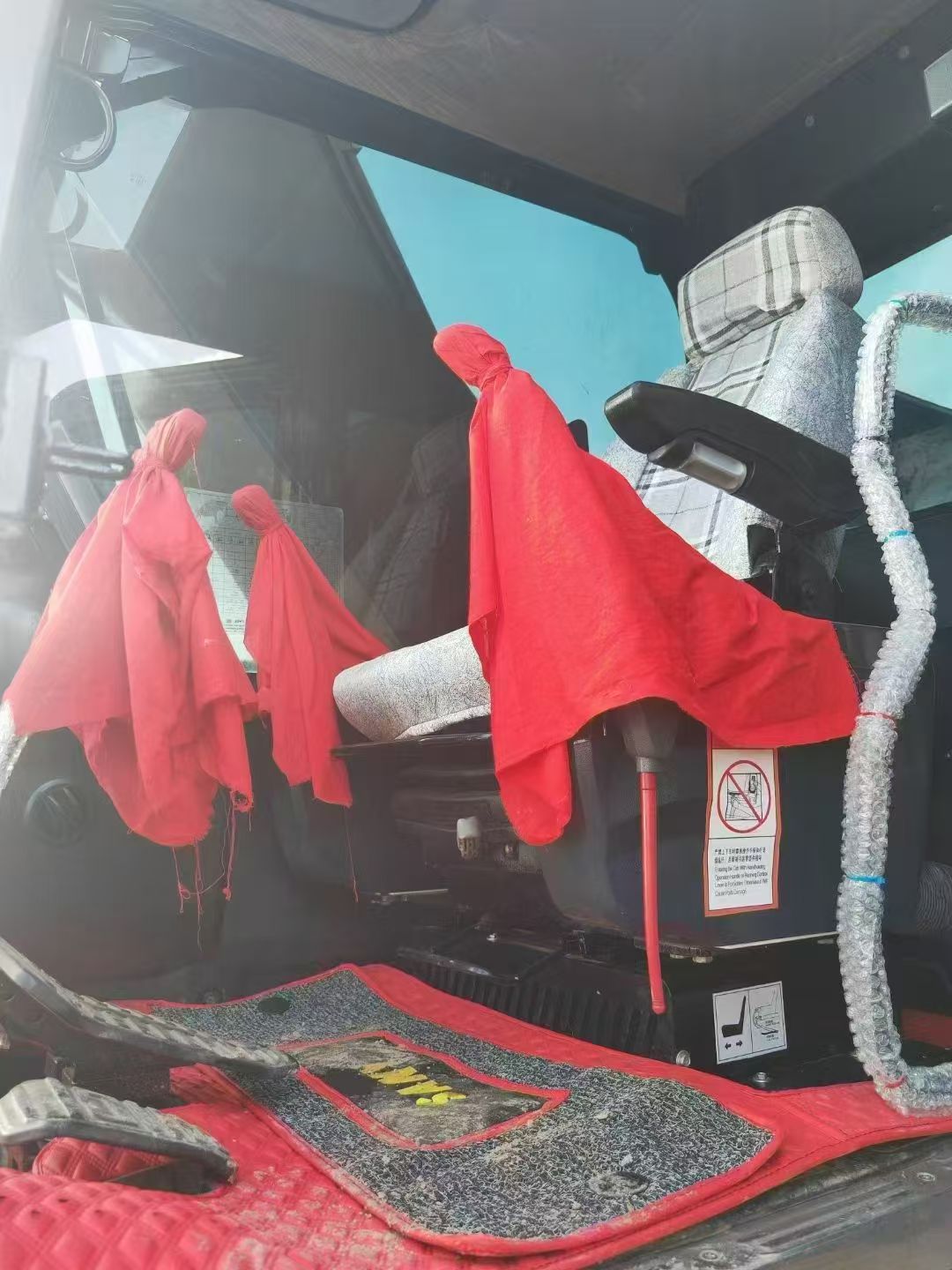

• Comfortable Operator Cabin: Designed for reduced fatigue and increased productivity

• Durable Components: Built for longevity and reduced maintenance

🏗️ Applications

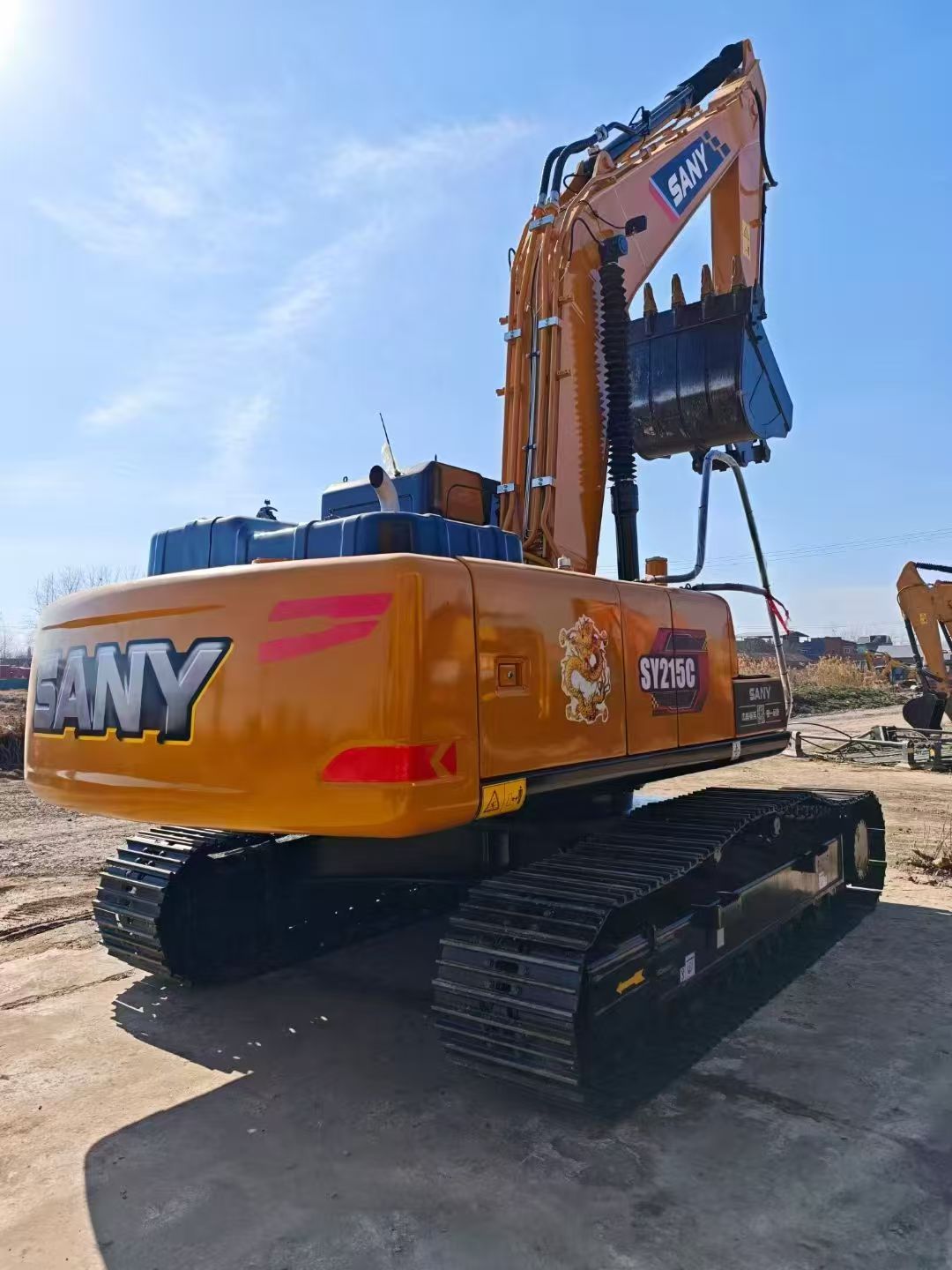

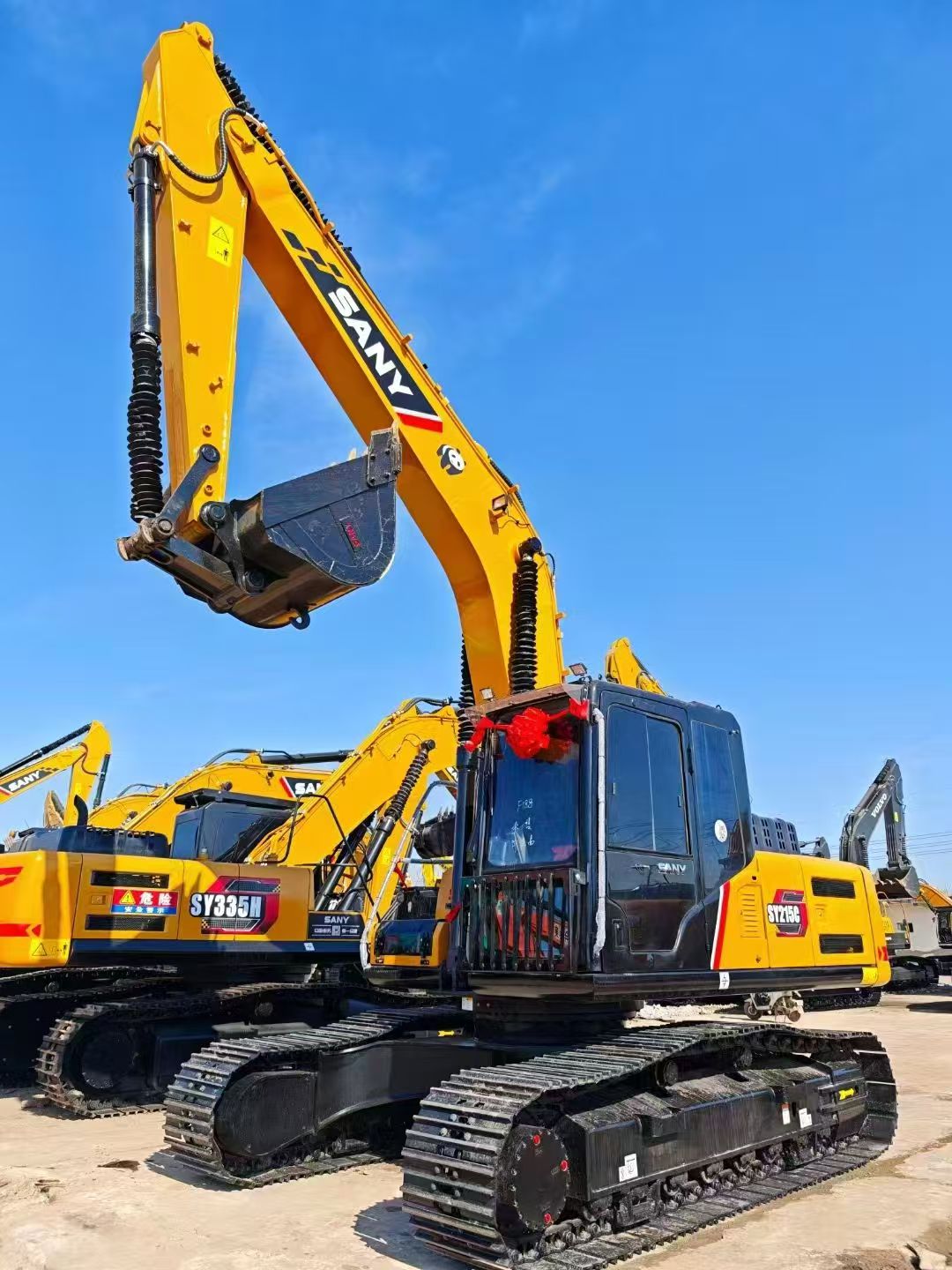

The SANY SY215C is ideal for:

• General construction

• Excavation and trenching

• Landscaping and site preparation

• Utility installation

• Road and infrastructure development
