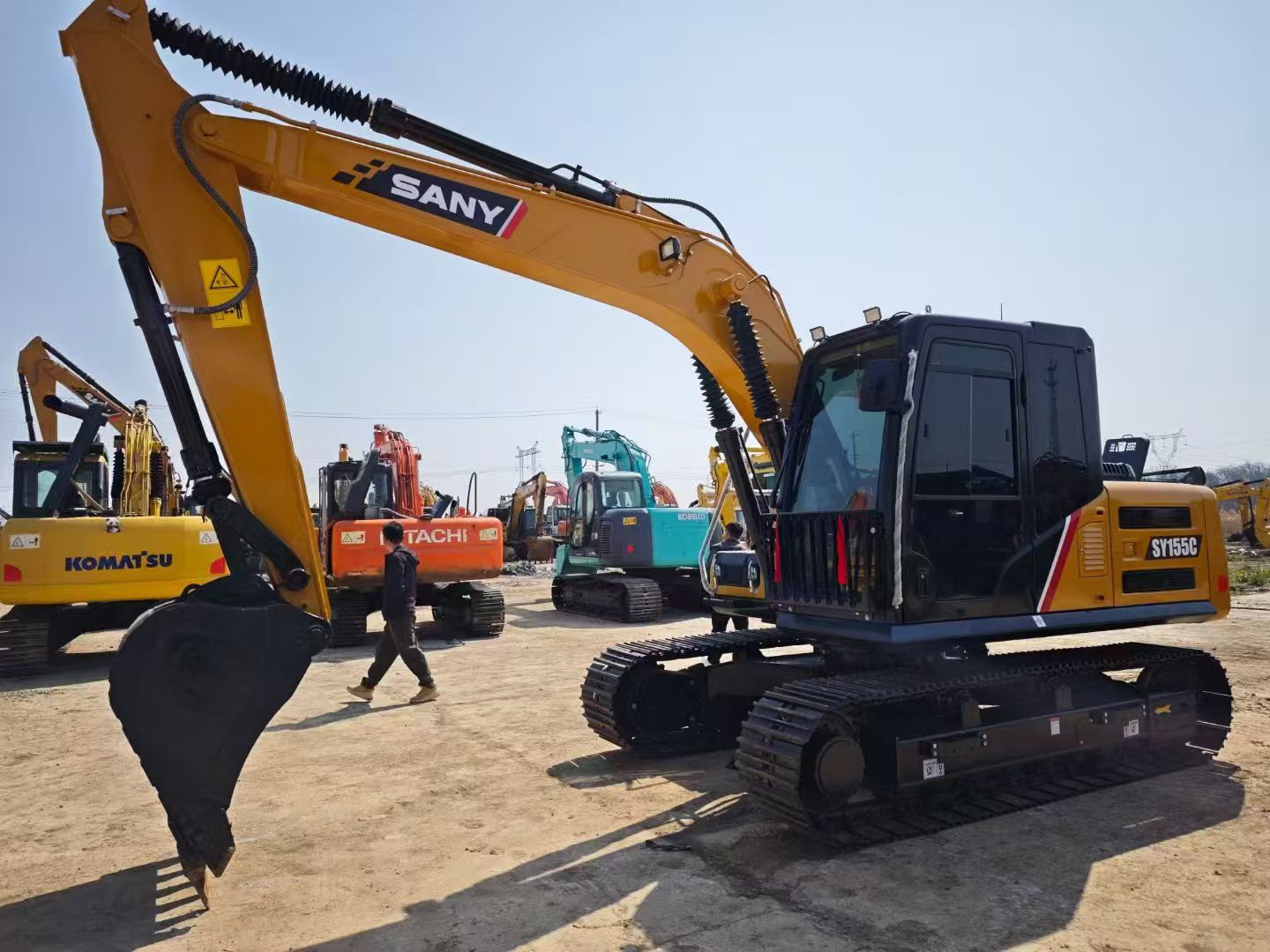

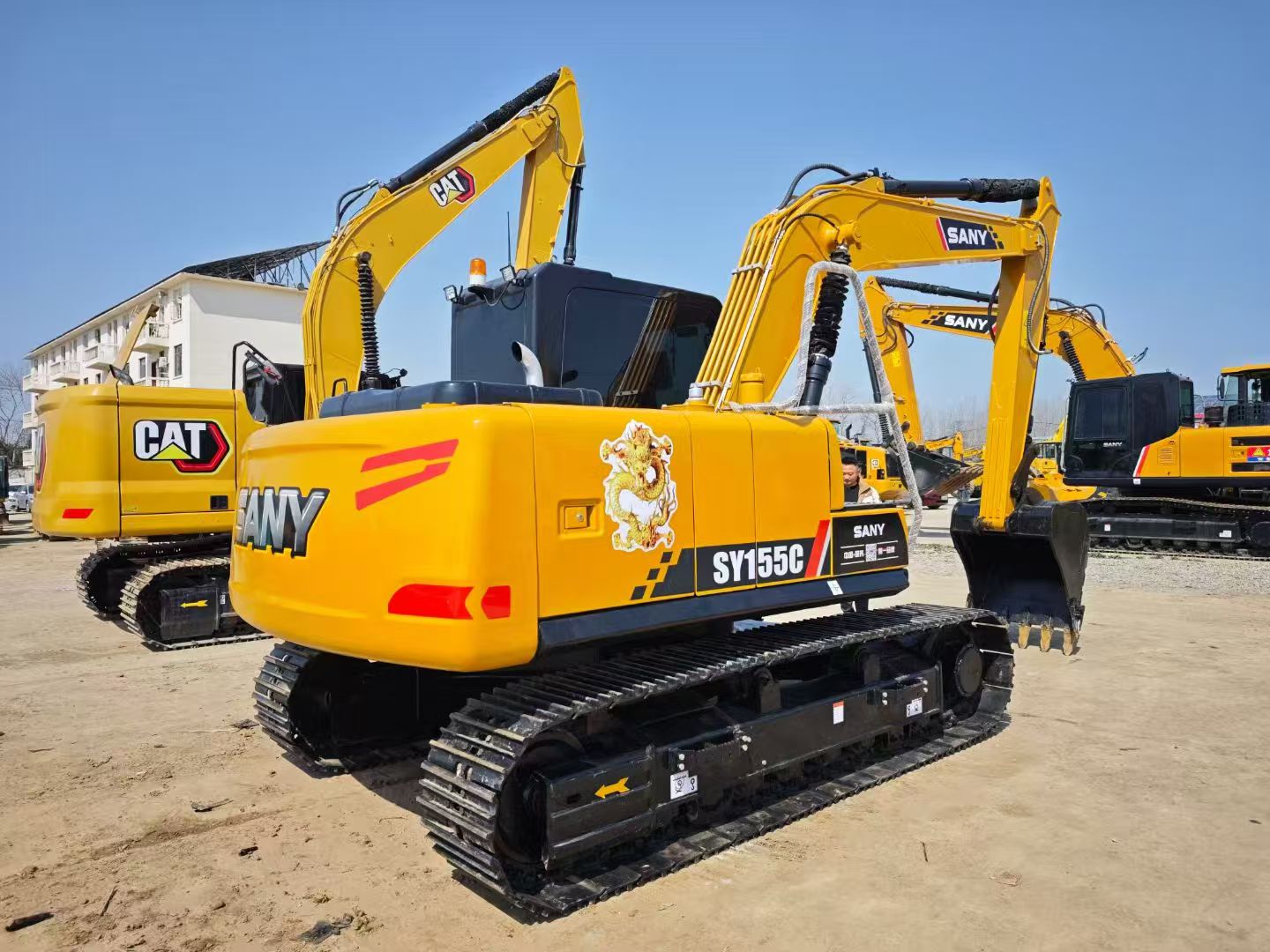

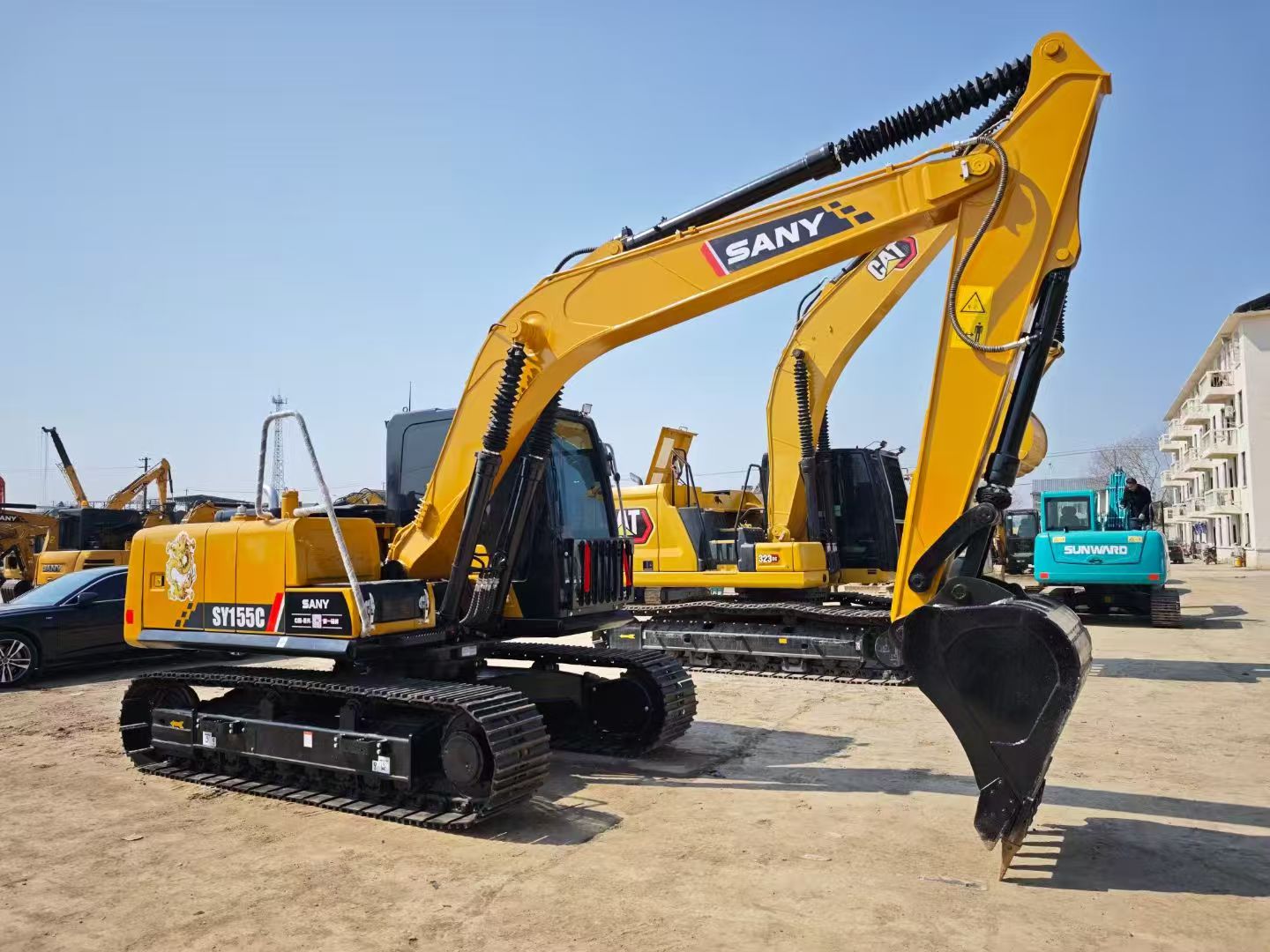

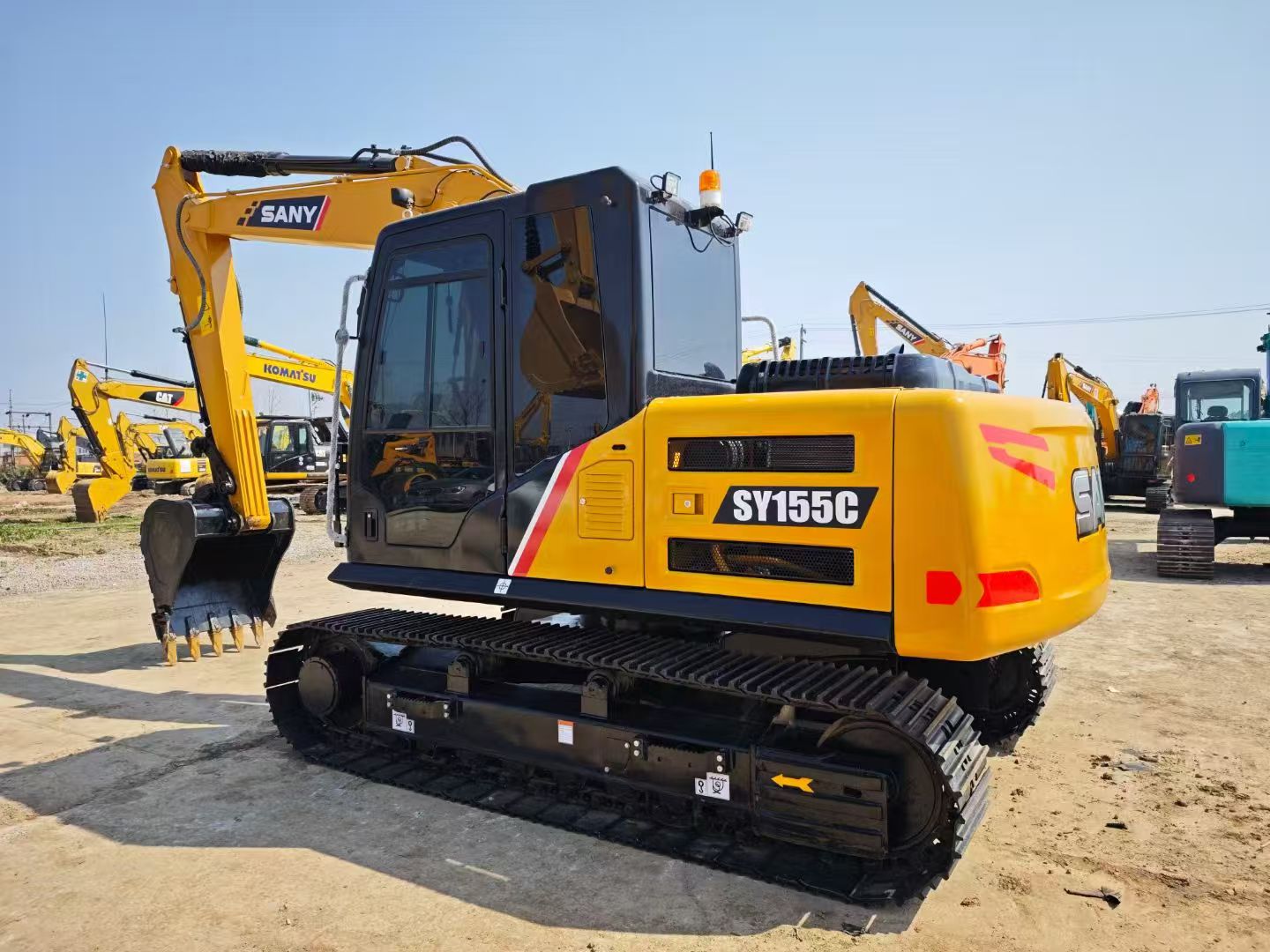

🚜 SANY SY155C Crawler Excavator – Specifications & Features

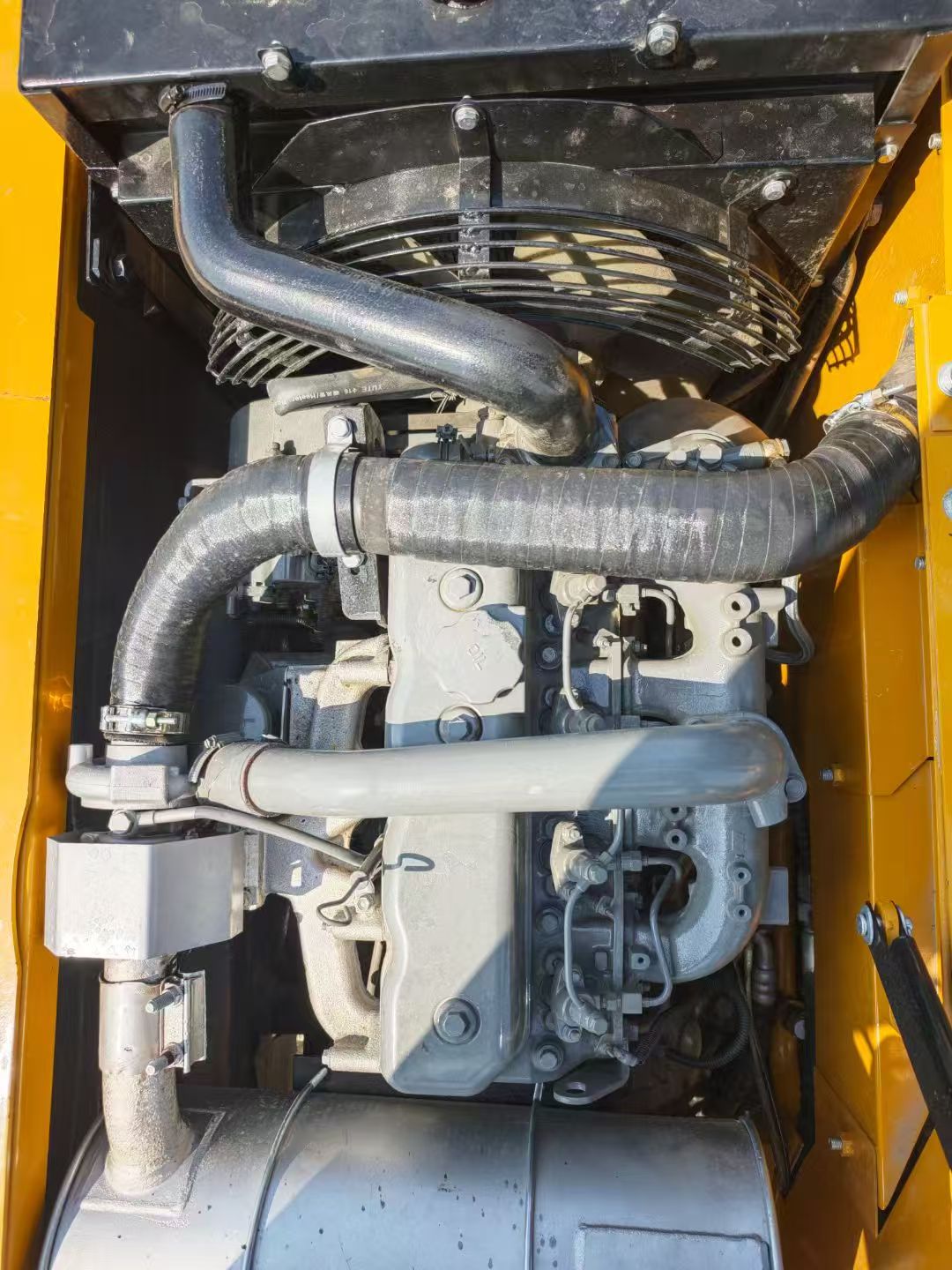

🔧 Engine & Performance

• Engine Model: Isuzu 4JJ1X

• Rated Power: 84 kW (113 hp) @ 2,200 rpm

• Displacement: 2.999 L

• Emission Standard: Tier 4 Final / Stage IV

• Fuel Tank Capacity: 240 L

• Hydraulic Oil Tank Capacity: 150 L

⚙️ Dimensions & Weight

• Operating Weight: 14,100 kg

• Transport Length: 8,178 mm

• Transport Width: 2,590 mm

• Transport Height: 2,820 mm

• Track Width: 600 mm

• Tail Swing Radius: 1,500 mm

• Ground Clearance: 425 mm

• Gradeability: 35°

💪 Hydraulic & Operational Performance

• Bucket Capacity: 0.65 m³

• Bucket Digging Force: 103 kN

• Arm Digging Force: 67 kN

• Maximum Digging Depth: 5,500 mm

• Maximum Digging Reach: 8,338 mm

• Swing Speed: 11 rpm

• Travel Speed: 5.5 km/h (high), 3.5 km/h (low)

• Maximum Travel Force: 70% gradeability

🛠️ Features & Technologies

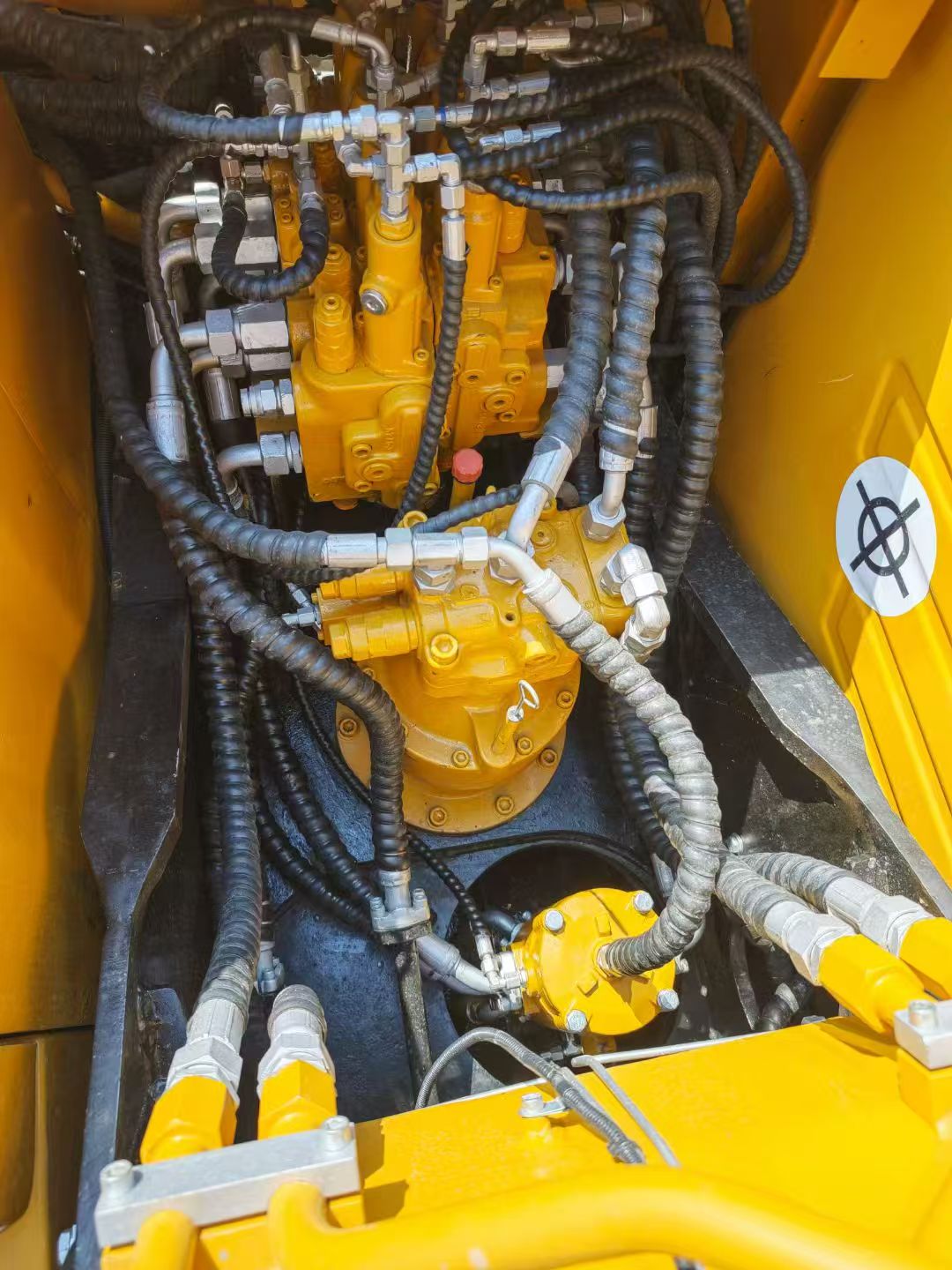

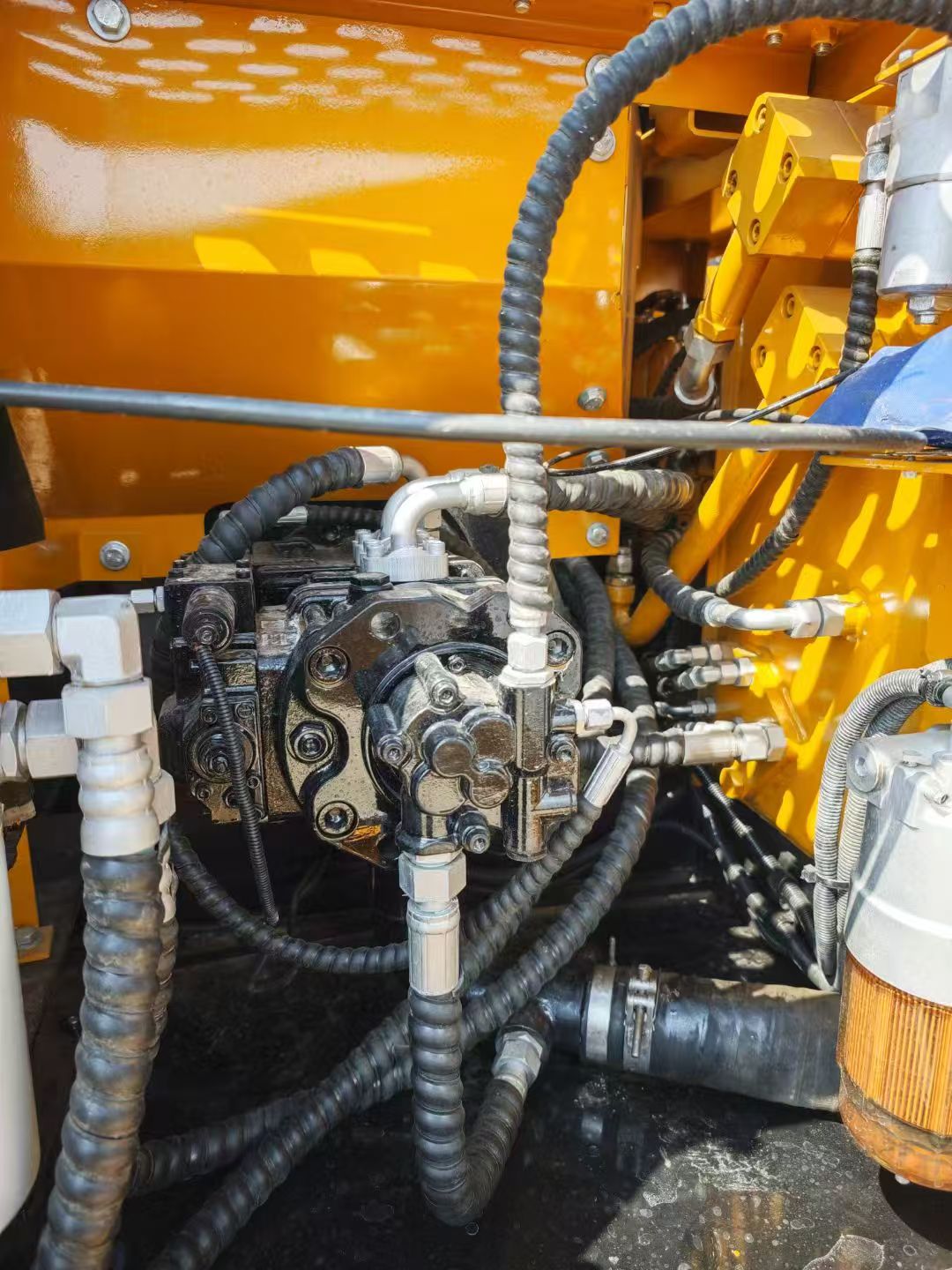

• Positive Flow Hydraulic System: Enhances efficiency and responsiveness

• Multi-Function Control: Allows operators to select performance modes based on task requirements

• Advanced Control System: Offers multiple work modes to optimize performance

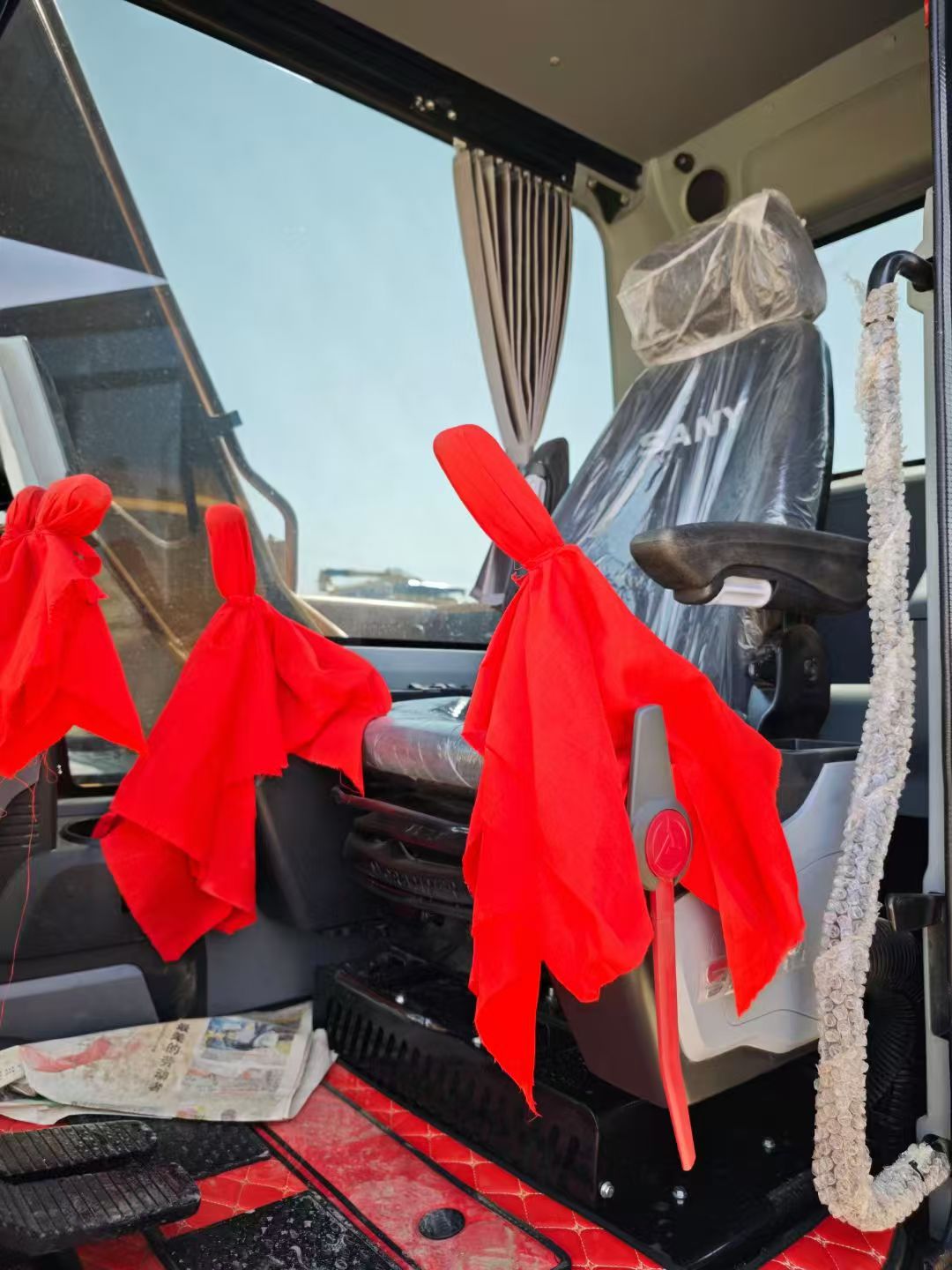

• Comfortable Operator Cabin: Designed for reduced fatigue and increased productivity

• Durable Components: Built for longevity and reduced maintenance

🏗️ Applications

The SANY SY155C is ideal for:

• General construction

• Excavation and trenching

• Landscaping and site preparation

• Utility installation

• Road and infrastructure development
