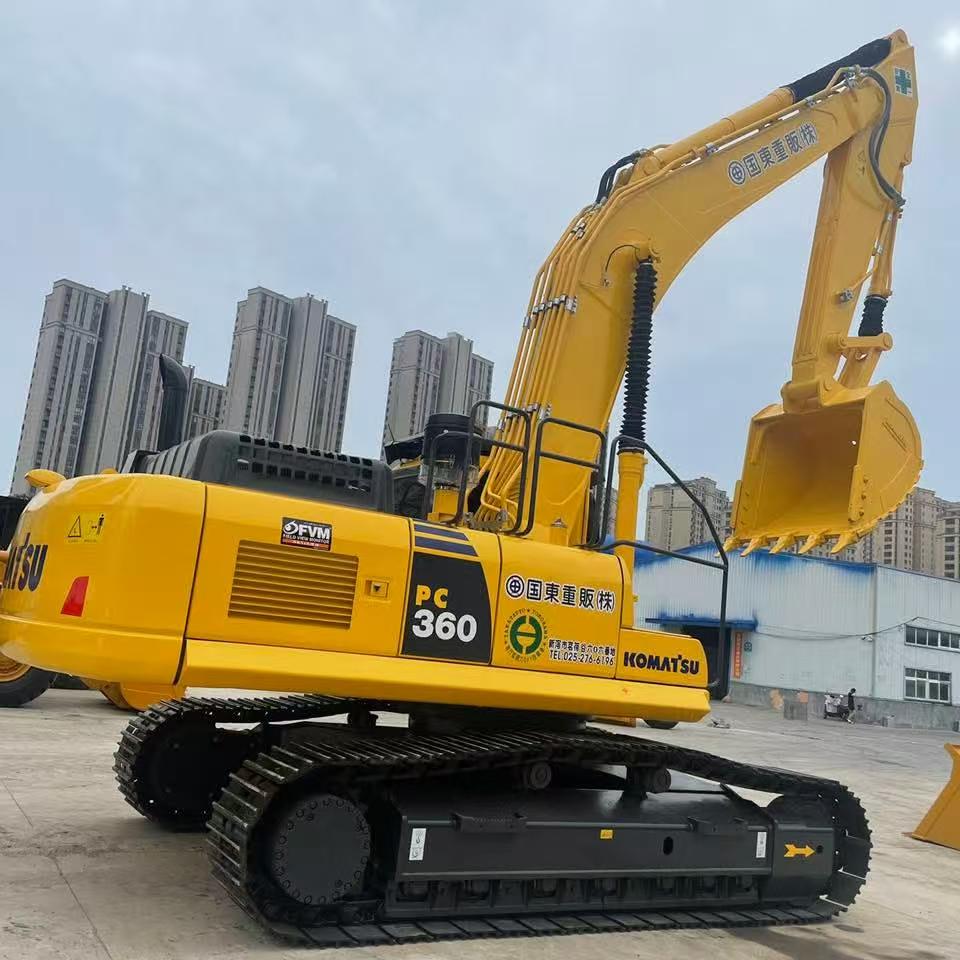

Komatsu PC360

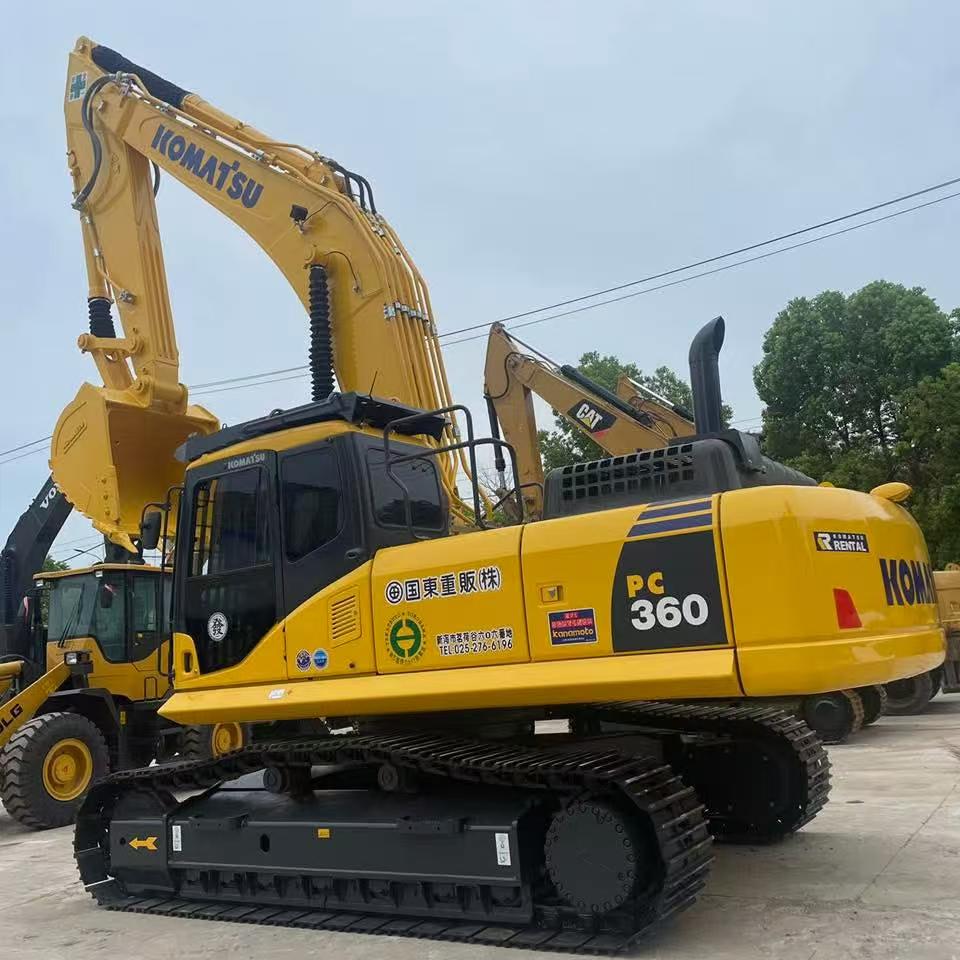

Komatsu PC360 - Image 2
Komatsu PC360 - Image 3
Komatsu PC360 - Image 4

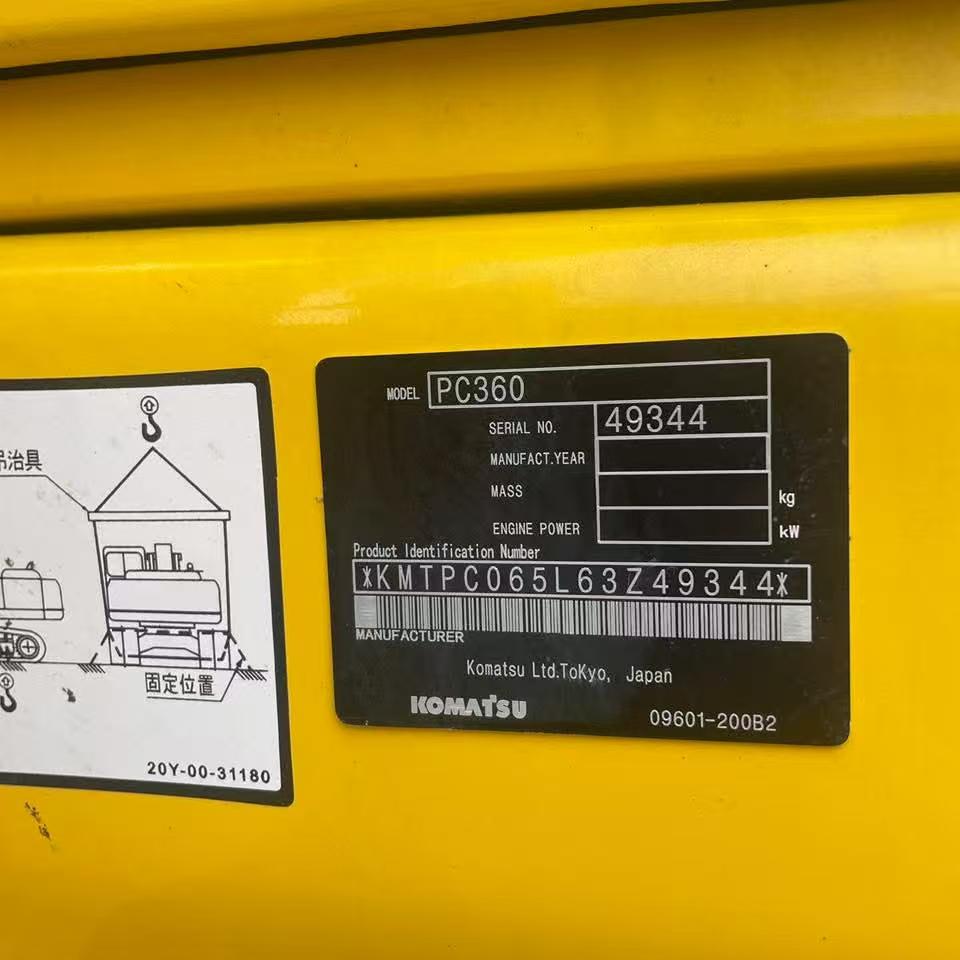

Komatsu PC360 - Image 5
Komatsu PC360 - Image 6
Komatsu PC360 - Image 7

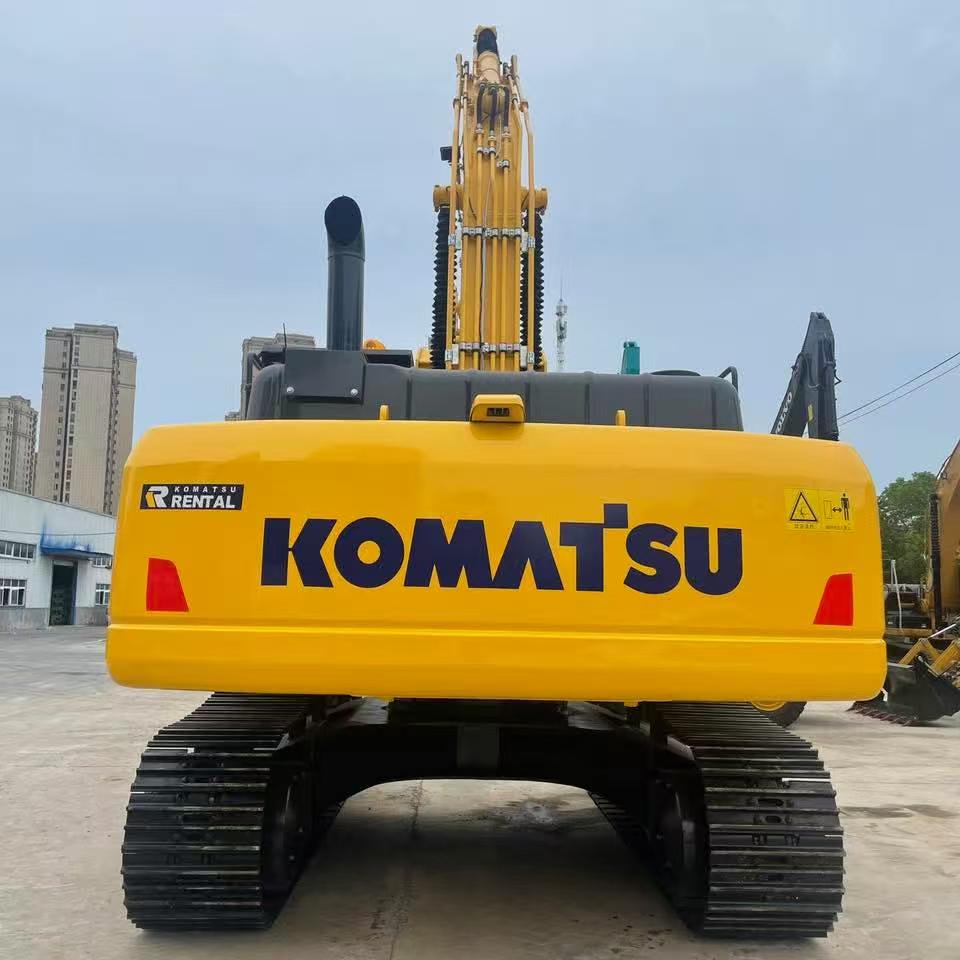

Komatsu PC360 - Image 8

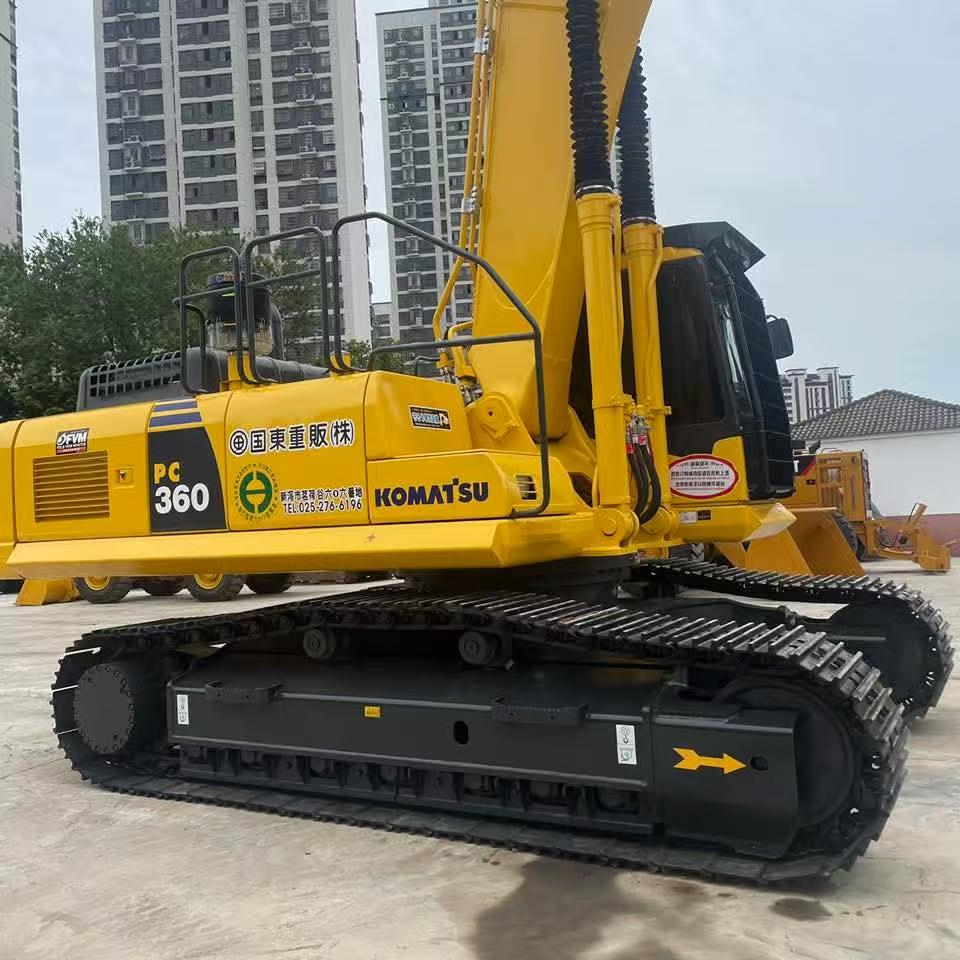

Komatsu PC360 - Image 9

In Stock

Komatsu PC360

Author:
Druid Wensleydale

$41,500.00

Categories: ,
Facebook

Komatsu PC360 Hydraulic Excavator – Full Description

Overview

The Komatsu PC360 is a powerful 36-ton class hydraulic crawler excavator designed for heavy-duty construction, quarry, and mining applications. It combines high performance, fuel efficiency, and operator comfort with Komatsu’s world-class reliability.

Engineered for long-term durability and precision control, the PC360 delivers outstanding digging and lifting performance even in the toughest job conditions.

Technical Specifications

Operating Weight: 35,600 – 36,500 kg
Engine Model: Komatsu SAA6D114E-6 (6-cylinder, turbocharged, water-cooled, direct injection)
Engine Power: 192 kW (257 HP) @ 1,950 rpm
Gross Power: 202 kW (271 HP) @ 1,950 rpm
Fuel Type: Diesel
Displacement: 8.27 L
Emission Standard: Tier 4 / Stage IV compliant

Hydraulic System:

  • System Type: Closed-center, load-sensing

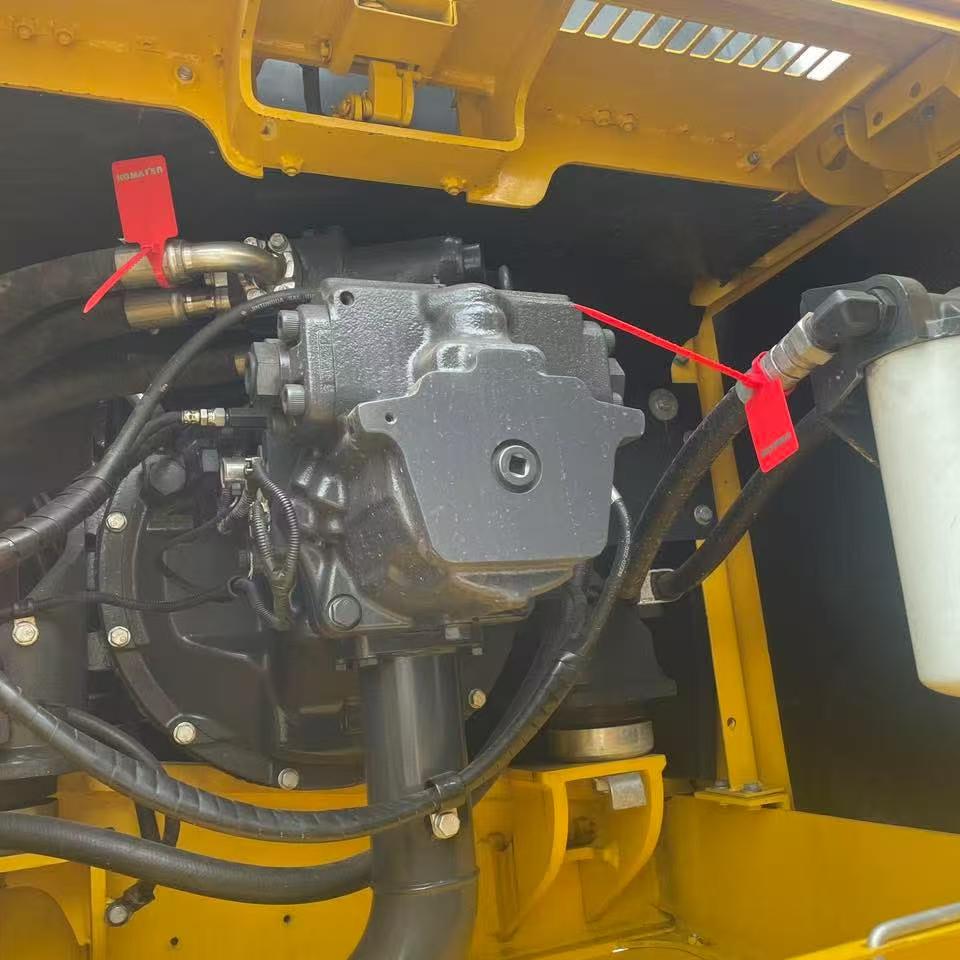

  • Main Pump: 2 variable-displacement piston pumps

  • Pump Flow: 535 L/min (total)

  • Working Pressure: 34.3 MPa

  • Hydraulic Oil Capacity: 188 L

Performance:

  • Maximum Digging Depth: 8.11 m

  • Maximum Reach at Ground Level: 11.0 m

  • Maximum Dumping Height: 7.3 m

  • Bucket Capacity: 0.68 – 1.96 m³ (standard 1.4 m³)

  • Bucket Digging Force: 222 kN

  • Arm Digging Force: 195 kN

  • Swing Speed: 9.5 rpm

  • Travel Speed: 3.2 – 5.5 km/h

  • Gradeability: 35° (70%)

  • Drawbar Pull: 28,000 kgf

Fuel & Fluid Capacities:

  • Fuel Tank: 605 L

  • Engine Oil: 35 L

  • Hydraulic Tank: 188 L

  • Cooling System: 37 L

  • Swing Drive: 17 L

Dimensions (Standard Configuration)

  • Overall Length: 11,230 mm

  • Overall Width: 3,190 mm

  • Overall Height: 3,450 mm

  • Tail Swing Radius: 3,460 mm

  • Ground Clearance: 470 mm

  • Track Length on Ground: 3,870 mm

  • Track Shoe Width: 600 mm (optional 700 mm or 800 mm)

Main Features

1. Powerful & Efficient Engine

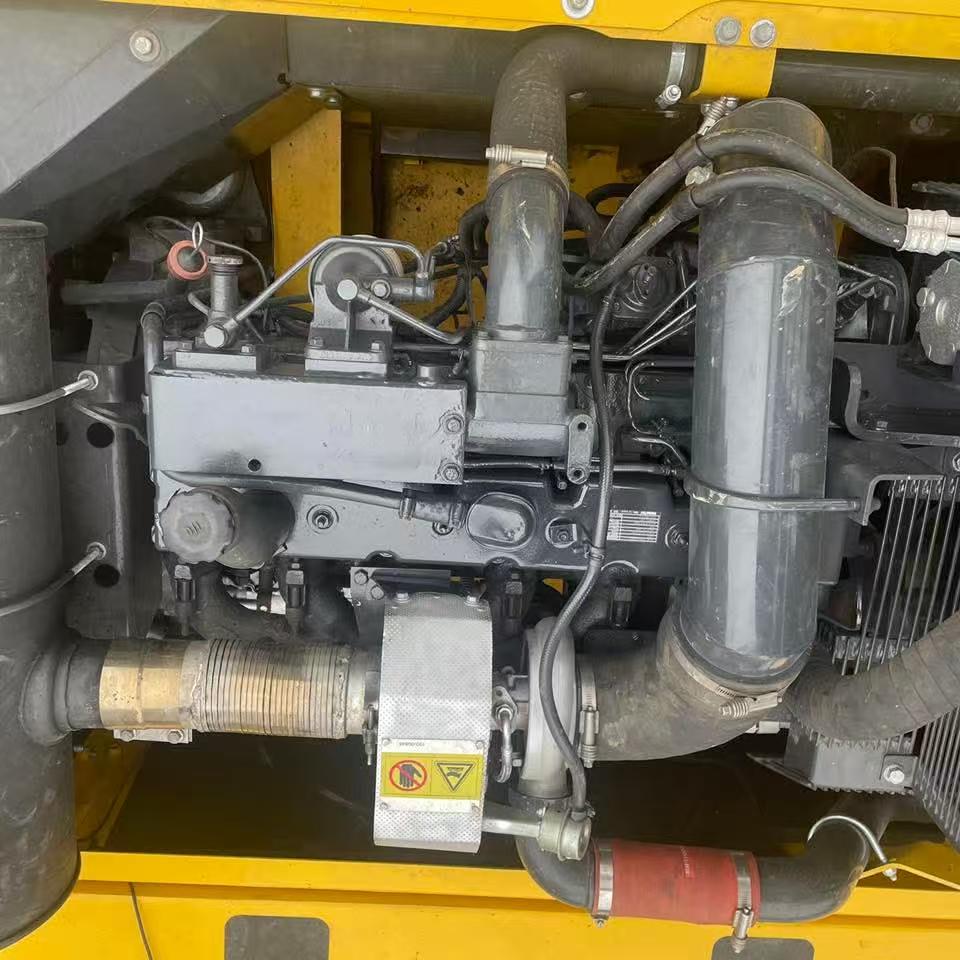

Equipped with the Komatsu SAA6D114E-6 engine, the PC360 delivers high torque and power output with exceptional fuel efficiency. The advanced combustion system meets modern emission standards without sacrificing performance.

2. Advanced Hydraulic System

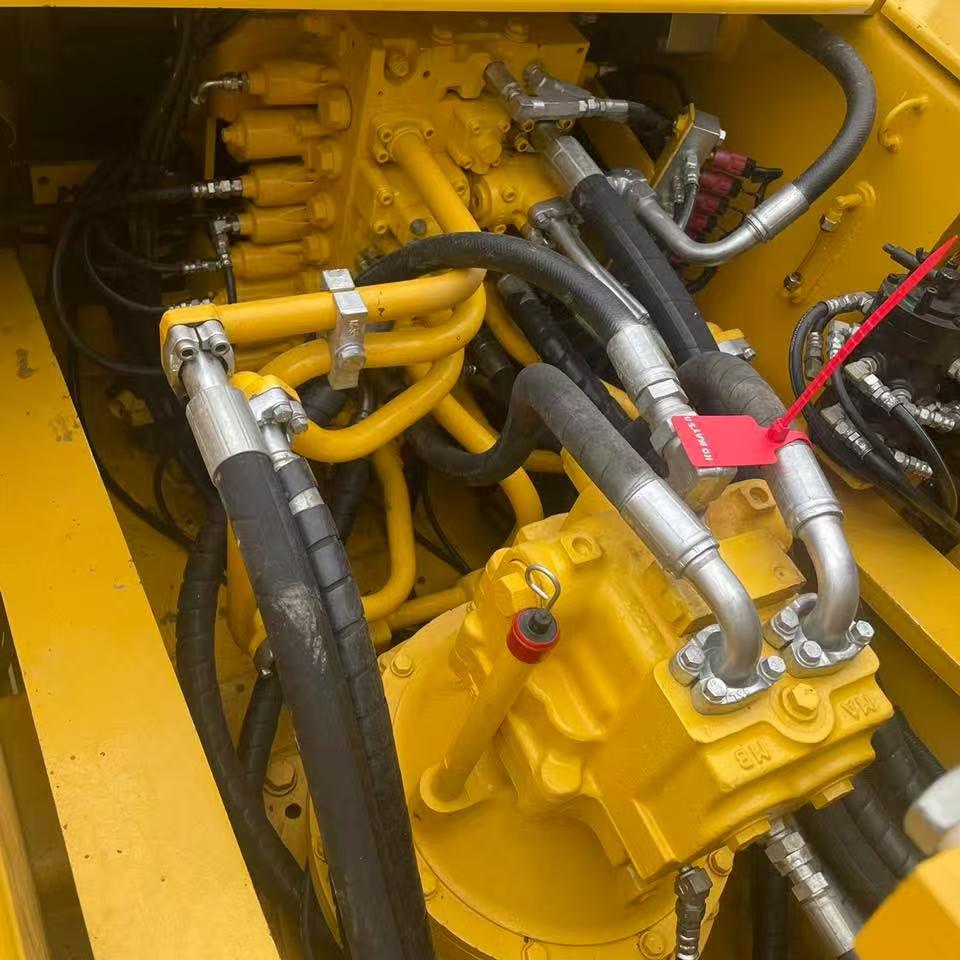

The PC360 uses a load-sensing, closed-center hydraulic system that provides smooth and precise control for all working functions. This ensures optimal power distribution, faster cycle times, and reduced fuel consumption.

3. Strong & Durable Structure
The upper frame, undercarriage, boom, and arm are reinforced using high-tensile steel for long life under extreme working conditions. The machine is designed to handle continuous heavy digging, lifting, and demolition tasks.

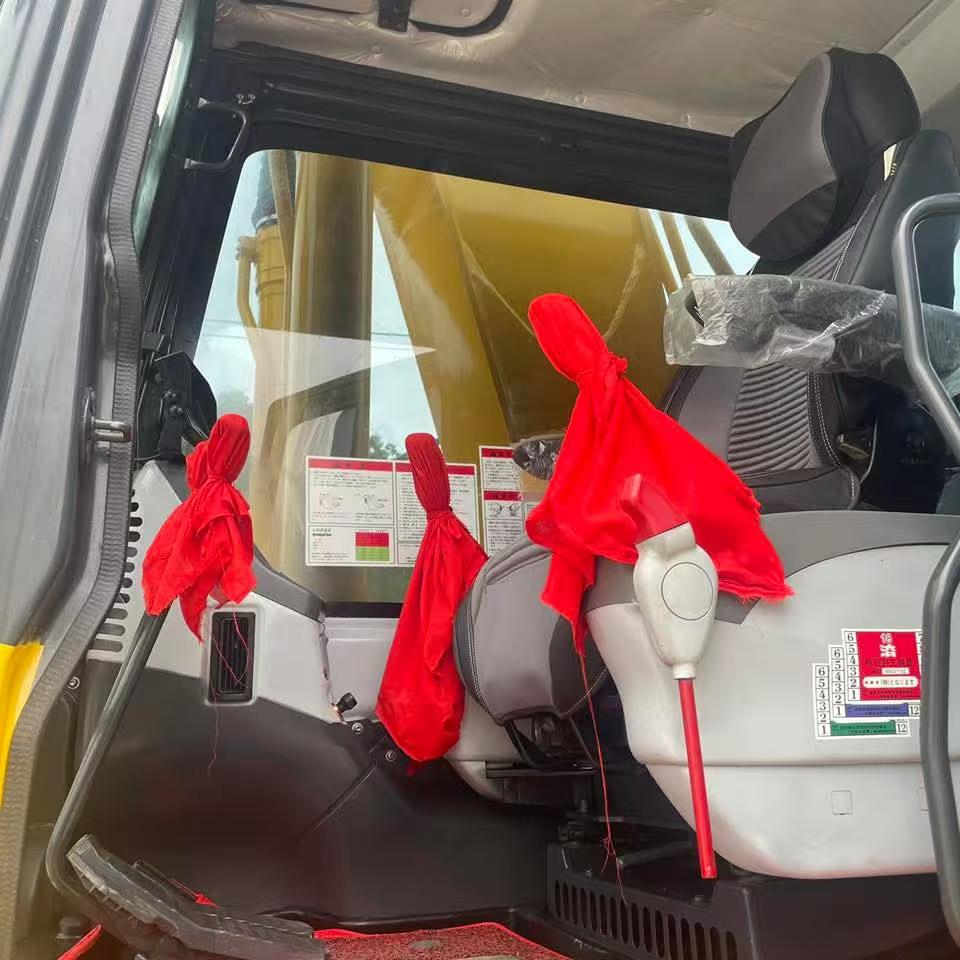

4. Comfortable Operator Cabin
Spacious, pressurized cabin with air conditioning, adjustable suspension seat, and low vibration levels. The wide glass windows ensure excellent visibility, while ergonomic joystick controls reduce operator fatigue.

5. Intelligent Monitoring System
A large LCD monitor provides real-time information about fuel usage, hydraulic status, working hours, and maintenance alerts. Operators can easily select working modes for productivity or fuel savings.

6. Easy Maintenance Access
Wide opening side panels and centralized service points allow quick access for daily inspection and maintenance. Long-life filters and durable components minimize downtime.

7. Versatility & Attachments
Compatible with a wide range of attachments such as:

  • General-purpose or rock buckets

  • Hydraulic breakers and hammers

  • Grapples, rippers, and compactors

  • Quick couplers for fast tool change

8. Safety & Stability
The ROPS/FOPS-certified cab, anti-slip plates, rear-view camera options, and sturdy undercarriage ensure maximum safety and stability during operation.

Applications

  • Earthmoving and large-scale excavation

  • Quarry and mining operations

  • Road and bridge construction

  • Demolition and foundation works

  • Pipeline and infrastructure projects

Advantages

  • Powerful digging and lifting capacity

  • Excellent fuel economy and reduced emissions

  • Long service life and easy maintenance

  • High resale value and global parts support

  • Smooth, precise hydraulic control for all tasks
